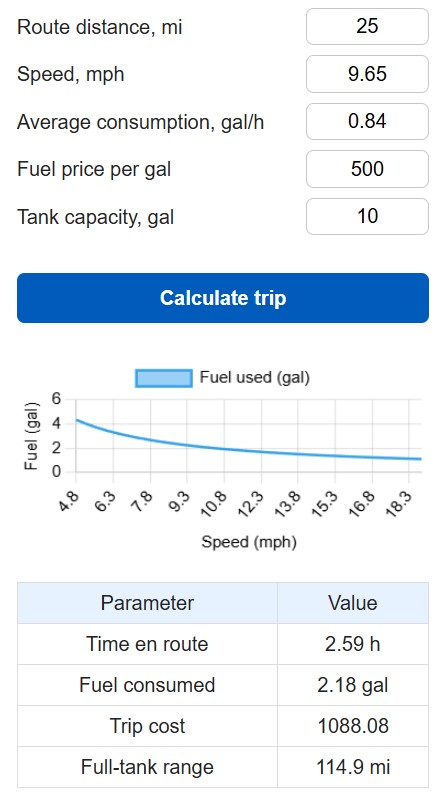

This text explains a boat fuel calculator and provides clear methods to estimate trip duration, fuel needed, trip cost and full tank range for small craft. The guidance is tailored for owners and operators who require quick, reliable numbers for planning and operational safety. The content covers input data, compact formulas, an example with revised figures, factors that change consumption, and pragmatic tips to reduce fuel use while maintaining safety and schedule.
Table of Contents
Input data required
- Route distance, expressed in kilometers or miles.
- Vessel speed, average speed in kilometers per hour or miles per hour.
- Engine fuel burn, liters per hour or gallons per hour under the chosen operating mode.
- Fuel price, cost per liter or cost per gallon in local currency.
- Tank capacity, usable volume in liters or gallons.
Core formulas and how they work
The following formulas give instant results needed for planning. Units must match across variables, so use distance in kilometers together with speed in km per hour and consumption in liters per hour, or use miles and gallons consistently.
Travel time in hours equals distance divided by speed
t = dist / speed
Fuel consumed during the trip equals travel time multiplied by hourly burn
F = t * burn
Trip cost equals fuel consumed multiplied by fuel price
C = F * price
Full tank range equals hours available from a full tank multiplied by speed
R = (tank / burn) * speed
Worked example with altered numbers
- Distance equals 55 kilometers
- Speed equals 22 kilometers per hour
- Burn equals 15 liters per hour
- Fuel price equals 85 currency units per liter
- Tank capacity equals 120 liters
Step one, compute travel time
t = 55 / 22 = 2.5 hours
Step two, fuel consumed
F = 2.5 * 15 = 37.5 liters
Step three, trip cost
C = 37.5 * 85 = 3187.5 currency units
Step four, full tank range
R = (120 / 15) * 22 = 176 kilometers
Why consumption versus speed is not linear
Real fuel burn does not scale in direct proportion to speed across the full operating envelope. Typical pattern is U shaped where very low speed produces inefficient operation due to hull friction and propeller slip, optimal cruising speed gives the best liters per kilometer, and high speed raises hydrodynamic resistance dramatically which increases fuel per distance. For route planning it is valuable to plot fuel consumed for the same distance across a range of speeds to pick an economical cruising point or to balance time and fuel cost.
Factors that change real world consumption
- Engine load and revolutions per minute A craft running at low rpm but heavy trim can consume more per distance than at trimmed efficient cruise.
- Payload and stowage Extra weight increases resistance and reduces range.
- Hull condition and fouling A rough or fouled hull increases drag significantly at speed.
- Propeller match Incorrect pitch or damaged blades reduce propulsion efficiency and raise burn.
- Environmental conditions Head seas and headwind increase specific fuel consumption per kilometer.
- Fuel quality and engine maintenance Poor maintenance raises hourly burn and lowers efficiency.
🚤 To achieve trustworthy estimates measure actual fuel consumed for a known run and compute liters or gallons per hour and per kilometer. Repeat measurements at the speeds you plan to use. Logging multiple runs under similar conditions helps establish a baseline burn value to use with the formulas above. If a dedicated flow meter is available capture liter per hour directly. When only refueling records are available use the fill to fill method and divide fuel used by distance traveled to derive liters per kilometer or gallons per mile.
Operational tips to reduce consumption
- Trim the boat so it reaches planing or efficient cruising mode with minimal bow rise.
- Use a propeller that matches the engine and typical load for the vessel.
- Remove unnecessary weight and secure loose gear to reduce drag and improve stability.
- Keep the hull clean and inspect for damage that increases water resistance.
- Follow manufacturer guidance for service intervals to maintain combustion efficiency.
- Plan routes that avoid long sectors into headwind and heavy chop when possible.
Reference consumption table with revised values
| Engine class | Typical burn range |
|---|---|
| Electric motor 2 to 6 kilowatts | Equivalent to 0 to 2 liters per hour in diesel terms depending on conversion |
| Outboard 9 horsepower | Approximately 3 to 8 liters per hour at moderate revs |
| Outboard 18 to 35 horsepower | Approximately 7 to 16 liters per hour under typical cruise |
| Outboard 45 to 70 horsepower | Approximately 11 to 28 liters per hour depending on load |
| Outboard 90 to 180 horsepower | Approximately 18 to 58 liters per hour for planing craft |
| Inboard diesel 120 to 350 kilowatts | Wide range from 35 to 220 liters per hour based on RPM and load |
When a route includes sections with different speeds split the route into legs and compute fuel per leg using the same formulas. Sum the fuel amounts and add the planned reserve. This approach gives a realistic total for runs that include slow transits, fast open water sections and final approach phases.
Safety margins and reserve policy
Always plan to arrive with usable reserve in the tank. Recommended reserve equals at minimum 10 percent of the tank volume or 15 minutes of motoring under expected conditions whichever is greater. For offshore or exposed passages use a larger reserve target to account for weather changes and diversions.
Limitations of simple models
The presented formulas assume constant speed steady state operation and stable environmental conditions. They do not include transient effects at acceleration, nor do they reflect fuel system losses, alternator load or electrical consumption from ancillary equipment. Use direct measurements for critical operations and treat model outputs as preliminary planning values.
⛴ A compact calculation framework yields essential answers for trip time, fuel quantity, trip cost and full tank range. Use measured burn numbers for the speeds you intend to run and always apply a prudent reserve margin to ensure safety and flexibility. The boat fuel calculator concept supports quick route planning and cost comparison, and it helps choose speeds that balance time and fuel expenditure.
Further reading
- Boatowner’s Mechanical and Electrical Manual by Nigel Calder
- Chapman Piloting and Seamanship
- Marine Diesel Basics by Nigel Calder
