Room Area Air Conditioning Calculator

An online tool for quick and accurate calculation of a room’s cooling load and selection of the recommended nominal air conditioner capacity in kW and BTU/h. It supports both Quick Mode for approximate calculations and Pro Mode for detailed analysis. The calculator considers solar gains through windows, heat losses through walls, internal heat sources, ventilation loads, and occupants’ heat. Fully optimized for mobile devices.

• Selection of household and wall-mounted split systems for apartments, offices, and small commercial spaces.
• Preliminary calculation for ventilation and HVAC design projects.
• Quick estimation of cooling needs when renovating or replacing windows/insulation.

How to Use the Calculator

1. Select the calculation mode: Quick — minimal input data, very fast approximate result; Pro — detailed inputs such as window area, orientation, insulation quality, and air exchange rate (ACH).
2. Enter the main room parameters: floor area, ceiling height, desired indoor temperature, and climate (outdoor temperature & estimated solar radiation).
3. Specify internal heat sources: number of people, lighting power (W/m²), equipment load, and ventilation rate (ACH).

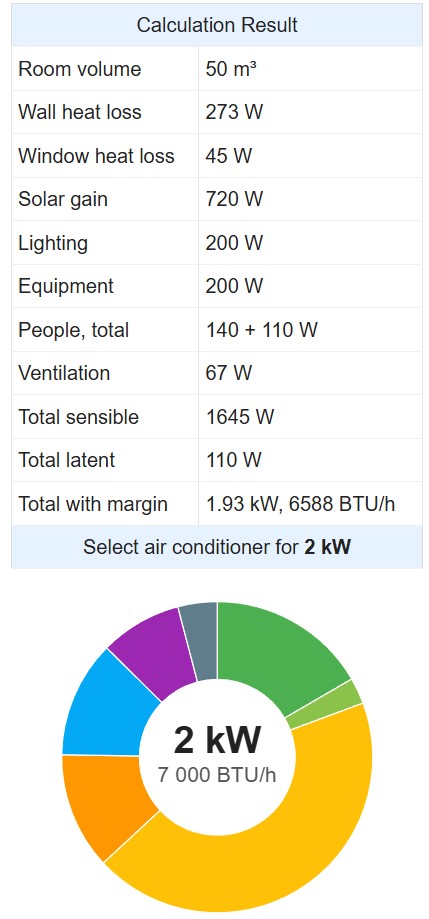

4. Click “Calculate” to see: a table of heat load contributions by source, total cooling load in watts, recommended AC capacity in kW and BTU/h, plus a pie chart of contributions.
5. Adjust parameters (e.g., insulation, sun shading, safety margin %) and compare results.

What the Calculator Estimates

• Total sensible (temperature-related) and latent (humidity-related) cooling load in watts.
• Breakdown of contributions: wall heat transfer, window heat transfer, solar gain, lighting, equipment, people, and ventilation.
• Total required cooling power with a user-defined safety margin, recommended standard AC unit size, and equivalent BTU/h.
• Generates a clear visual graph and a detailed results table.

Key Concepts & Units

• Sensible heat — load that changes the air temperature (W).
• Latent heat — load related to moisture removal/evaporation (W).
• ACH — air changes per hour, a measure of ventilation rate.
• BTU/h — British Thermal Unit per hour. Conversion: 1 W = 3.4121 BTU/h.

Simplified Formulas

These demonstrate how the components are summed together.

Heat transfer through walls:
$$Q_{\text{tr}} = U \cdot A \cdot \Delta T$$
Where \(U\) is the thermal transmittance (W/m²·K), \(A\) is the area (m²), and \(\Delta T = T_{outdoor} – T_{indoor}\) (°C).

Heat transfer through windows:
$$Q_{\text{win,trans}} = U_{win} \cdot A_{win} \cdot \Delta T$$

Solar gain through windows:
$$Q_{\text{solar}} = A_{win} \cdot SHGC \cdot I_{solar,dir}$$
Where SHGC is the Solar Heat Gain Coefficient (0–1), and \(I_{solar,dir}\) is the direct solar radiation (W/m²).

Ventilation – sensible component:
$$Q_{\text{vent}} = \rho \cdot c_p \cdot \dot{V} \cdot \Delta T$$
Where:
\(\rho\) = air density (~1.2 kg/m³),
\(c_p\) = specific heat capacity (~1005 J/(kg·K)),
\(\dot{V}\) = airflow rate (m³/s).

Internal sources:

• Lighting: \(Q_{light} = \text{W/m²} \cdot A\).
• Equipment: sum of electrical loads \(Q_{equip} = \sum P_i\) (W).
• People: sensible and latent loads \(Q_{people, sens} = N \cdot q_{sens}\), \(Q_{people, lat} = N \cdot q_{lat}\) (W).

Total cooling load:
$$Q_{total} = Q_{sensible} + Q_{latent}$$

Recommended AC power with margin:
$$Q_{with\_margin} = Q_{total} \cdot (1 + \text{margin%}/100)$$

Conversions:
$$P_{kW} = \frac{Q_{with\_margin}}{1000}$$
$$P_{BTU/h} = Q_{with\_margin} \cdot 3.4121$$

Input Guidelines

• Sum the total area of all windows, including glass doors.
• Typical SHGC for clear glass is 0.5–0.7 if no exact value is known.
• For ceiling heights above 3 m, consider the larger air volume and higher ventilation loads.
• ACH reference values: 0.5–1.0 for residential rooms, 2–6 for commercial or industrial spaces.
• Typical safety margin: 10–20%, higher for spaces with intense solar exposure.

Technical Notes

• This tool uses simplified engineering methods. For professional projects, follow local HVAC standards and precise climate data.
• SHGC and U-values are generalized; use manufacturer data for better accuracy.
• Latent loads are crucial for humid areas (restaurants, gyms, bathrooms) and may need separate analysis.
• When choosing an AC unit, consider not only cooling power but also energy efficiency ratings (SEER/EER).

Example Contributions for a 25 m² Room

Heat Emissions from People

Typical Equipment Heat Emissions

Practical Tips

• If the room has many sun-facing windows, consider blinds, tinting, or shading structures to reduce solar load.
• Improving wall/floor insulation (lower U-value) consistently decreases the required AC size.
• For rooms with variable occupancy (e.g., meeting halls), calculate for both peak and typical usage scenarios.
• Avoid oversizing: an oversized AC will short-cycle, reducing comfort and efficiency. When unsure, consult HVAC specialists.

This calculator provides a fast and clear preliminary estimate of required AC power. For final design and installation, consult professionals or use detailed engineering methods with climate and architectural data. Even so, these calculations are accurate enough for home and small commercial purposes.

💡 Tip: Save the calculation results to share with contractors or keep a record for future equipment selection.

Remember: cooling load fluctuates with seasons and room usage. The safety margin helps the system handle hot days and sudden occupancy spikes without strain. Too high of a margin, however, leads to short-cycling, reducing efficiency and equipment lifespan.

References

1. ASHRAE Handbook — Fundamentals, 2023 Edition. American Society of Heating, Refrigerating and Air-Conditioning Engineers.
2. Cengel, Y.A., Boles, M.A. Thermodynamics: An Engineering Approach, 9th Edition. McGraw-Hill, 2019.
3. McQuiston, F.C., Parker, J.D., Spitler, J.D. Heating, Ventilating, and Air Conditioning: Analysis and Design, 7th Edition. Wiley, 2016.
4. Hittle, D.C., Manual J Residential Load Calculation. National Comfort Institute, 2020.
