3D Pyramid & Cone Volume

A 3D Pyramid & Cone Volume Calculator is one of those tools that looks simple at first and then turns out to be useful in a lot more places than expected. It helps with fast size checks, material estimates, and shape planning for cones, pyramids, and their cut or truncated versions. Instead of juggling formulas, unit conversions, and rough estimates by hand, this calculator gives a clean result in a few clicks.

📐 That is the real value here. It is built for quick work. Enter the dimensions, pick the shape, choose the unit system, and the calculator does the rest. It shows volume, surface area, and weight estimate when density is entered. It also gives a 3D view and a 2D sketch so the shape can be checked before trusting the numbers.

This makes it useful for shop work, design work, school-style geometry checks, packaging, fabrication planning, and simple material estimates. It also helps when a project uses different measurement systems. Feet and inches are common in the United States. Meters and millimeters are common in metric work. The calculator supports both styles without making the process feel complicated.

What this calculator is built to do

This tool handles two common shapes. A cone and a pyramid. The cone version is based on the diameter of the base and the height. The pyramid version is based on the base side and the height, with an option for a pyramid that has more than 4 sides. Both shapes can also be cut at the top, which changes the final volume and the drawing.

For everyday use, that means the calculator can handle full shapes and trimmed shapes. A full cone is useful for funnels, hoppers, and tapered parts. A full pyramid fits common geometric work and many display or design shapes. A cut cone or cut pyramid fits parts that have been shortened or sliced off at the top.

How the interface works

The interface is built around a few simple actions. First, pick the shape. Then choose the unit system. After that, enter the size values. The preview updates, the drawing updates, and the results update. No extra steps are needed.

The shape buttons choose between Cone and Pyramid. The unit buttons switch between Feet, Inches, Meters, and Millimeters. By default, the calculator starts in Feet. That keeps it friendly for imperial users right away. The sizes and labels on the chart also follow the selected unit system, so the display stays consistent.

Control	What it does	Why it matters
Shape buttons	Switch between cone and pyramid	Changes the math and the drawing
Unit buttons	Switch between ft, in, m, and mm	Keeps the numbers readable
Dimension inputs	Set the size of the shape	Defines the result
Cut value	Sets how much of the top is removed	Used for truncated shapes
Density	Sets the material weight per volume	Used for weight estimate

What each input means

The input names are kept short and practical.

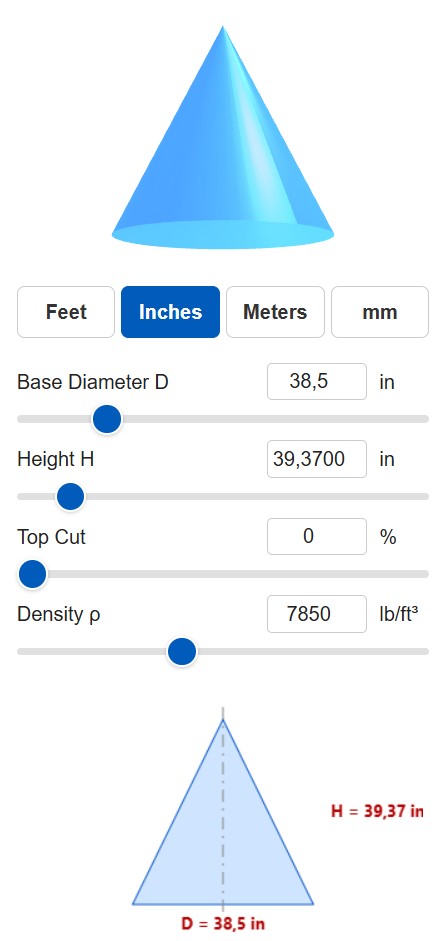

For a cone, the key value is the base diameter. That is the width across the circular base. Height is the straight vertical distance from bottom to top. If the cone is cut at the top, the cut setting shows how much of the top remains.

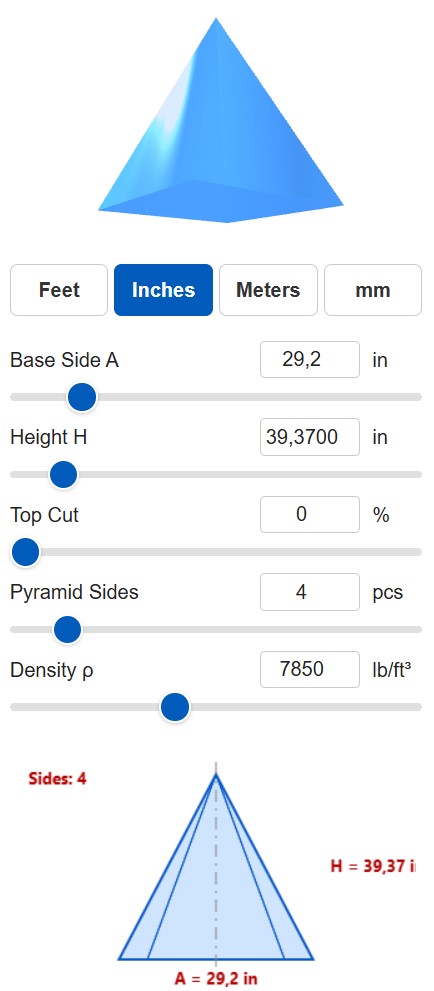

For a pyramid, the base side is the size of one side of the base. Height is still the vertical distance from base to top. The number of sides can be changed to fit the type of pyramid being represented. The cut setting works the same way here too.

Density is the value that helps estimate weight. It is tied to the material being used. A dense material like steel will weigh far more than foam or plastic in the same shape. That is why the density field matters so much in real work.

Formulas behind the calculator

The calculator handles the math automatically, but the basic idea is easy to follow.

For a cone:

Volume = 1/3 × pi × height × radius squared

If the cone is cut at the top, the calculator adjusts the result based on the top size and the cut value.

For a pyramid:

Volume = base area × height ÷ 3

When the pyramid is cut at the top, the result changes based on how much of the original shape remains.

For weight:

Weight = Volume × Density

That is the whole idea in a nutshell. The calculator does the hard part, but the logic stays simple and easy to understand.

Why the 3D view helps

A lot of people trust numbers too fast and skip the visual check. That is usually where mistakes sneak in. The 3D view helps solve that. It shows the shape in a way that is easy to recognize. The 2D sketch gives a flatter reference with labels and dimensions.

This is useful when a cone looks more like a tapered part than a perfect school geometry example. It is also useful when the pyramid has a different number of sides or when the top has been cut off. A quick look at the drawing can catch a wrong unit, a bad dimension, or a shape that does not match the real object.

Visual element	What it shows	Best use
3D model	Shape in perspective	Fast recognition
2D sketch	Flat outline with labels	Dimension check
Unit labels	Current measurement system	Confirms ft, in, m, or mm
Cut line	Top removal level	Checks truncated shapes

How to use it step by step

Start with the shape. Choose Cone or Pyramid. After that, set the unit system. Feet are the default, which is useful for imperial users right away. Inches are better for smaller parts. Meters and millimeters fit metric work.

Next, enter the size values. For a cone, that means base diameter and height. For a pyramid, that means base side and height. If the shape is cut at the top, enter the cut percentage. If the weight estimate matters, enter density too.

After that, check the drawing. The preview should match the intended shape. Then read the result table. It gives volume, surface area, and weight estimate in the correct units for the selected mode.

Step	Action	Result
1	Choose Cone or Pyramid	Sets the shape type
2	Choose the unit system	Sets ft, in, m, or mm
3	Enter dimensions	Defines the geometry
4	Set cut and density if needed	Refines the result
5	Check the 3D view and table	Confirms the final answer

Unit systems and when to use them

The unit buttons are one of the most important parts of the calculator because they keep the workflow natural. If the job is in the United States, Feet and Inches usually feel right. If the job is on a metric drawing or a technical plan, Meters and Millimeters are the better fit.

The calculator is designed to keep the labels, dimensions, sketch, and results aligned with the selected system. That helps avoid one of the most common measuring mistakes, which is mixing units without noticing it.

Unit	Best for	Typical use	Display style
Feet	Large layouts and general imperial work	Construction, containers, shop planning	ft
Inches	Small parts and tighter measuring	Fixtures, fittings, small cones	in
Meters	General metric planning	Layouts, specifications, overall sizing	m
Millimeters	Detailed technical work	Fabrication, CAD, precision parts	mm

Why density matters

Density changes the weight estimate. The same shape can be light or heavy depending on what it is made from. That is why the calculator includes it. Without density, there is no useful weight estimate. With density, the result becomes much more practical.

For metric work, density is usually shown in kg/m³. For imperial work, it is more natural to use lb/ft³. That keeps the display in the same style as the size inputs. It also makes the calculator feel more natural to American users.

A steel cone and a foam cone may look the same in the drawing. The weight result can be wildly different. That is exactly the kind of thing this calculator helps clarify.

Imperial example with real numbers

Here is a simple cone example using imperial units. Base diameter = 12 in, Height = 18 in, Cut = 0 %, Density = 0.283 lb/in³.

First, the radius is half the diameter.

Radius = 12 ÷ 2 = 6 in

Volume = 1/3 × pi × 18 × 6 × 6

Volume = 1/3 × pi × 18 × 36

Volume = 1/3 × 2035.752 roughly

Volume = 678.584 in³ roughly

Weight = 678.584 × 0.283

Weight = 191.977 lb roughly

Now the same style of example for a pyramid. Base side = 10 in, Height = 15 in, Density = 0.283 lb/in³.

If the pyramid has a square base, the base area is:

Base area = 10 × 10 = 100 in²

Volume = 100 × 15 ÷ 3

Volume = 500 in³

Weight = 500 × 0.283

Weight = 141.5 lb

These examples show the kind of answer the calculator is built to produce. Enter the size, get the result, and avoid hand math.

Example	Input	Volume result	Weight result
Cone	12 in base, 18 in height	678.584 in³	191.977 lb
Square pyramid	10 in base, 15 in height	500 in³	141.5 lb
Cut cone	Same cone, top removed	Smaller than full cone	Lower than full cone
Cut pyramid	Same pyramid, top removed	Smaller than full pyramid	Lower than full pyramid

Common mistakes to avoid

✍ The biggest mistakes are usually simple. A wrong unit is one of the most common. Another common issue is entering a cut value that does not match the real shape. A third issue is using a density value from the wrong material. Any of those can throw the result off fast.

Another smart habit is checking the sketch before reading the table. A quick visual check can catch a bad input faster than staring at the numbers. That is especially true when switching between Feet, Inches, Meters, and Millimeters.

Mistake	What goes wrong	Better move
Wrong unit selected	Numbers are scaled incorrectly	Pick the unit system first
Bad cut value	Shape does not match the real object	Check the top removal setting
Wrong density	Weight estimate is off	Use the actual material density
Ignoring the sketch	Shape may be entered wrong	Confirm the 3D preview

When this calculator is most useful

This tool is especially useful when a project needs a quick shape check without opening a full CAD program. It works well for classroom geometry, shop planning, estimate sheets, project notes, and material comparisons. It is also handy when someone needs a fast answer in imperial units and does not want to stop and convert everything by hand.

For cones, it helps with tapered shapes, funnels, and cut cone forms. For pyramids, it helps with display shapes, structural mockups, and geometry examples. The 3D preview makes both shapes easier to understand at a glance.

This calculator keeps the process simple. Pick the shape. Pick the units. Enter the numbers. Check the preview. Read the result. That is all it needs to do, and that is what makes it useful.

It is built for real users, not just math practice. It supports imperial and metric work, shows the shape visually, and gives the main results in a clean format. For anyone working with cones or pyramids, that saves time and cuts down on mistakes.

Literature

• Geometry references for cones, pyramids, and truncated solids
• Engineering math guides for volume, area, and density calculations
• Technical drawing references for dimension labels and unit use
• Material density charts for common metals, woods, plastics, and foams
• Introductory textbooks on solid geometry and measurement systems
