Gazebo Designer with Drawings and 3D

Use this online gazebo builder to define section geometry, draw internal slats, preview the assembled structure in 3D and get an immediate parts list and cost estimate. The tool runs in a browser on phones and desktops without installation. Enter section width and height, pick roof type and side count, sketch slats on the section canvas and watch the model and metrics update in real time.

Workflow — how to design fast

• Select roof profile: flat, gable or polygonal.
• Pick the number of sides for the gazebo: 4, 6 or 8.
• Set section width and clear height using sliders or number inputs.
• Draw slats on the small square canvas. Each line drawn is one slat.
• Watch the 3D view update immediately with posts, slats and roofing.
• Enter material costs per linear foot for posts and slats and per square foot for roofing. Totals recalculate automatically.

Working area and drawing rules

Start by defining roof form and side count. The app generates one editable section matching those parameters. Use that section as the working area to add slats. Click two points on the canvas to place a slat. The system snaps to the grid so lines are straight. Drag a point to reposition it. Use Undo to remove the last slat and Clear to remove all slats and restore the base section contour.

Best practice for slat layout

• Design slats parallel to a chosen side for an even visual rhythm.
• Lock roof shape and side count before extensive manual drawing to preserve symmetry.
• If you change section dimensions after many slats are drawn expect to adjust some slats manually.

Interface elements explained

• Roof buttons set the top geometry and affect how roofing panels are computed.
• Side count buttons determine symmetry and replicate the drawn section around the plan.
• 3D canvas is interactive. Rotate, zoom and inspect fasteners, slat positions and clearances.

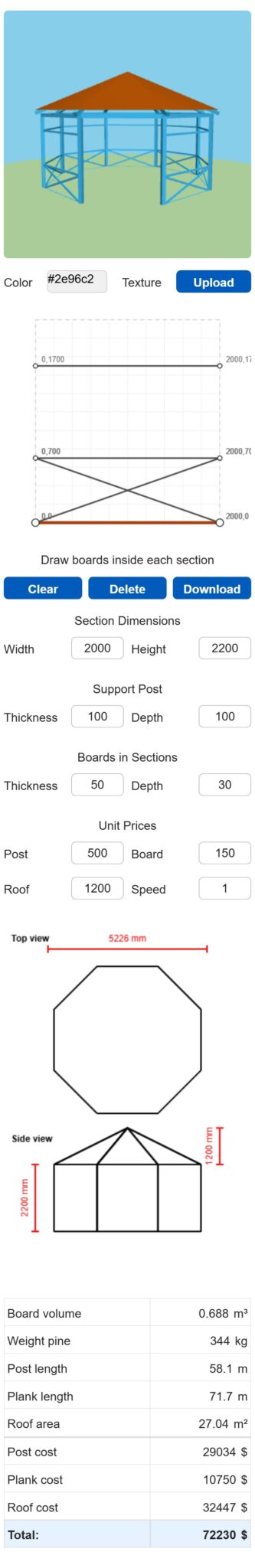

• Section drawing canvas is scaled to true dimensions. The contour updates with width and height changes.
• Control inputs include section width, section height, post thickness and depth, slat thickness and slat depth. Changes are applied instantly.
• Cost block contains three fields: post price per linear foot, slat price per linear foot and roof price per square foot. The estimate updates live.
• Action buttons include Clear, Undo and Download to save a screenshot and the export file.
• Metrics table lists lumber volume, wood weight estimate, total post length, total slat length, roof area, cost per item and grand total.

Design guidance and build considerations

Draw and measure in inches and feet so material lengths match local suppliers. The drawing canvas uses scale for visualization and the app converts measurements to feet for takeoff and roof area. Slats you draw in the section are applied to every section with the same geometry. If you resize the section after drawing many custom slats some manual repositioning may be required.

• Plan attachment points and service access from the start to simplify assembly and maintenance.
• Provide ventilation under the roof and protect timber from prolonged damp exposure to extend life.
• Use coated or pressure treated wood for exposed structural posts.
• Design slat spacing to match standard board widths and reduce offcuts.

Unit chart and typical ranges in US units

Parameter	Units	Typical range
Section width	in / ft	8 in — 78.7 in (0.7 ft — 6.6 ft)
Section height	in / ft	39.4 in — 118.1 in (3.3 ft — 9.8 ft)
Post thickness	in	1.6 in — 4.7 in
Slat thickness	in	0.39 in — 1.57 in
Slat depth	in	0.79 in — 3.15 in
Post price	$ / ft	enter your local value
Slat price	$ / ft	enter your local value
Roof price	$ / ft²	enter your local value

Example cost calculation in US units

Item	Formula	Example
Total post length	number of posts × post height (ft)	8 × 6.9 = 55.2 ft
Total slat length	sum of all slat lengths (ft)	41.0 ft
Roof area	computed from roof shape (ft²)	103.3 ft²
Post cost	post length × price per ft	55.2 × $15 = $828
Slat cost	slat length × price per ft	41.0 × $2.50 = $102.50
Roof cost	roof area × price per ft²	103.3 × $10 = $1,033
Total estimate	sum of items	$1,963.50

Export saves the visible screen including the 3D view and the drawing. Screen colors are indicative. The tool provides rough estimates. Include allowance for waste, fasteners and labor when finalizing a budget.

Tips to reduce waste and cost

• Arrange slats so cuts align with standard board lengths to minimize offcuts.
• Order slightly more material than the calculated net length to cover defects and mistakes.
• Compare price per linear foot and price per square foot simultaneously to avoid false savings.
• Use diagonal bracing where wind uplift or racking could be an issue.

The builder exports a high resolution screenshot and a CSV takeoff file with part lengths and counts. Use the CSV in spreadsheets or import the geometry into CAD tools that accept simple lists. The 3D viewer uses standard web GL so it runs offline in a browser session and is touch enabled for tablets and phones. If you need to calculate the area and cost of painting, please use a different calculator.

Common pitfalls and how to avoid them

• Drawing slats before finalizing roof type leads to mismatched repeats when the geometry changes.
• Using unrealistic slat thickness or depth can push slats beyond available material dimensions.
• Not checking symmetry after changing side count can produce misaligned corners. Re-check the 3D view after any global change.

Next steps for production

After you validate the 3D model and cost estimate export the CSV, prepare a cut list and a marking plan for the shop. Label each section and part so installers can assemble quickly. Schedule a short build rehearsal or mock-up of a single section to confirm joints and fasteners.

Follow the sequence: choose roof and sides, set section dimensions, draw slats, inspect the 3D preview and enter material prices to get a working model and a preliminary budget. Use the export to hand a clear cut list and estimate to contractors or suppliers. The interactive approach speeds iteration and reduces on-site surprises.
