Bolt and Washer Torque Calculator

This professional online tool quickly estimates bolt preload for a given torque, checks thread stress, calculates the torque needed for a target proof strength, and evaluates average contact pressure under washers. The calculator factors in friction coefficient K, thread pitch, bolt grade/material, and washer geometry.

Using the Calculator

1. Select bolt grade — the tool fills ultimate/yield stress automatically, editable if needed.
2. Enter nominal diameter d (mm) and thread pitch p (mm) to compute the tensile stress area At.
3. Set friction coefficient K and applied torque T (N·m). Optionally define target proof % and safety factor.

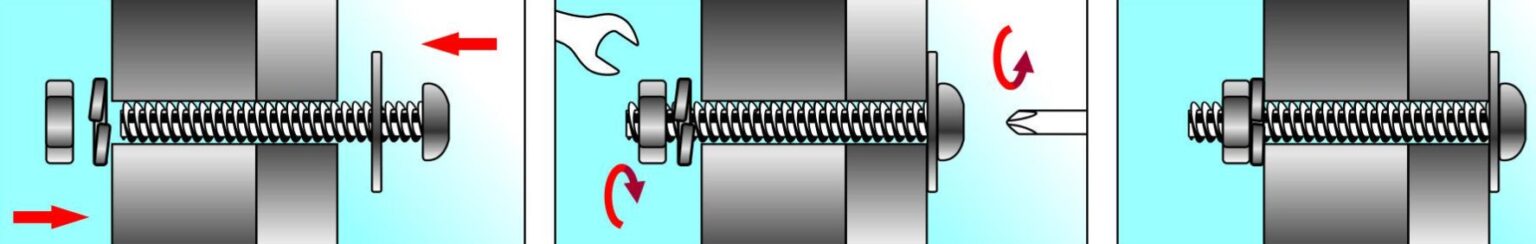

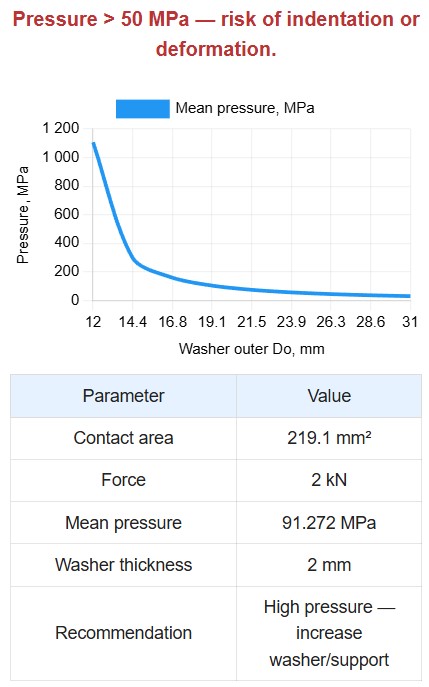

4. Click “Calculate” to get preload F, thread stress σ, strength check, and charts showing preload vs torque or pressure vs washer outer diameter.
5. Switch to “Washers – Pressure” mode to assess average contact pressure based on washer geometry and visualize pressure vs Do chart.

What the Calculator Computes

• Preload F derived from torque T and friction K.
• Effective thread area At and stress σ = F / At.
• Required torque to reach a target proof percentage.
• Average washer pressure: p = F / A_contact, where A_contact = π/4 (Do² – Di²).
• Simple verification comparing σ with allowable stress and safety guidance.

Formulas Used

Tensile thread area:

$$ A_t = \frac{\pi}{4}\,(d – 0.9382\,p)^2 $$

Preload approximation from torque:

$$ T = K F d_m \quad\Rightarrow\quad F = \frac{T}{K d_m} $$

d_m is the nominal diameter in meters (mm/1000).

Thread stress:

$$ \sigma = \frac{F}{A_t} $$

Washer contact area:

$$ A_{\text{contact}} = \frac{\pi}{4}\,(D_o^2 – D_i^2) $$

Average pressure under washer:

$$ p_{\text{avg}} = \frac{F}{A_{\text{contact}}} $$

Key Concepts

• At — calculated thread area for accurate σ; thread minor diameter differs from full bolt diameter.
• K — empirical coefficient considering friction in threads and under nut/bolt head. Depends on lubrication, coating, and surface condition.
• Proof / σy — material yield strength. Ensuring σ < proof / safetyFactor gives a rough margin against plastic deformation.
• Washers — distribute load and reduce local pressure, preventing indentation on softer materials.

Calculation Examples

Example 1: Bolt grade 10.9 (σu=1000 MPa, σy=900 MPa), d=12 mm, p=1.25 mm, K=0.22, T=65 N·m, target=75%, safetyFactor=1.6.

• Thread area: At = π/4*(12 – 0.9382*1.25)² ≈ 75.3 mm²
• Preload: d_m=0.012 m → F = 65 / (0.22*0.012) ≈ 24621 N
• Stress: σ = 24621 / 75.3 ≈ 327 MPa
• Allowable (proof / SF): 900 / 1.6 ≈ 562.5 MPa → σ well below limit, safe margin exists
• Recommendation: maintain torque or optimize K for precise preload.

Example 2: Washer Do=22 mm, Di=12 mm, thickness t=2.5 mm, F=25 kN.

• Contact area: A_contact = π/4*(22² – 12²) ≈ 572 mm²
• Average pressure: p_avg = 25000 / 572 ≈ 43.7 MPa
• Guidance: steel washers acceptable <50 MPa; otherwise use larger washer or support plate.

Technical Notes

• K varies 0.10 (well-lubricated) to 0.30+ (dry/rusted). Small changes in K strongly affect preload.
• Washers increase contact area, reduce local stress, essential on soft surfaces (aluminum, plastic).
• Thread stress is calculated using At, not full diameter.
• Bolt grade determines σu/σy limits.

For repeatable preload, use calibrated torque wrenches and reference K or standard torque tables for grade and diameter. For high loads, combine torque measurement with elongation checks or strain gauges. On delicate parts, increase contact area with larger washer or plate.

Reference Tables

Bolt Strength Grades

Thread Area At & Preload @75% Proof

Washer Dimensions & Pressure @25 kN

Typical friction coefficient K continued

The Bolt and Washer Torque Calculator provides fast engineering level estimates of preload, thread stress, required torque for a chosen proof percentage, and washer contact pressure based on geometry and material data. Use the tool for initial design checks, selecting bolt grade, and validating washer dimensions. For final validation apply detailed standards and measurement techniques including calibrated torque wrenches and direct tension measurement.
