Density Table of Copper and Bronze

Copper, brass, and bronze are some of the most useful metals in everyday work. They show up in electrical parts, plumbing hardware, decorative pieces, machine parts, fittings, bushings, valves, fasteners, and custom jobs that need a mix of strength, weight, and easy machining. The tricky part is that these metals can look similar at a glance while behaving very differently by weight. That is where a density calculator becomes useful.

This calculator is built for quick reference. It gives a clean density result, a specific volume result, and simple graphs that show how the value changes with temperature and pressure. It starts in imperial mode by default, which makes sense for many American users. Pounds, feet, Fahrenheit, and psi are ready first, while metric is one switch away for anyone who needs it. The unit selector affects the whole screen, so there is no need to juggle mixed systems.

What this calculator is for

This tool is made for fast, practical use. It helps when a project needs a quick density check for copper, brass, bronze, and related copper-based materials. That matters in shops, design work, inventory checks, repair work, and material comparison. A part made from copper does not weigh the same as a part made from brass of the same size. Bronze behaves differently again. Small changes in composition can shift the weight more than expected.

📊 The calculator is also helpful when a user needs to compare a few options before picking the final material. That can save time during quoting, ordering, and planning. Instead of guessing whether a part will feel light or heavy, the user can check a reference value in seconds.

This is not a lab instrument. It is a practical reference tool. The numbers are meant to be easy to use, easy to compare, and easy to read on the same screen.

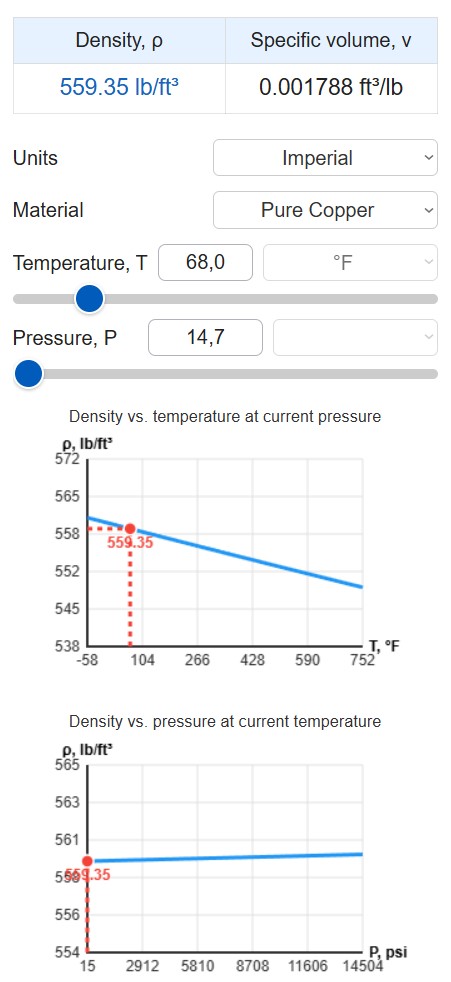

How to use it

1. Start with the unit selector. Imperial is the default, so the calculator opens in the system many American users already expect. If the job uses metric, switch once and the entire page follows that choice.
2. Next, choose the material. The list includes pure copper, yellow brass, red brass, tin bronze, aluminum bronze, beryllium bronze, cupronickel, constantan, and manganin. Pick the material that matches the part or the closest useful reference.
3. Then set temperature. In imperial mode, the field uses °F. In metric mode, it uses °C. Temperature can affect density a little, so this field helps make the result match the actual condition instead of a rough guess.
4. After that, set pressure. In imperial mode, pressure is shown in psi. In metric mode, it is shown in MPa. Pressure usually has a smaller effect in everyday use, but the calculator includes it so the result and the graph stay complete.
5. Finally, read the density and specific volume at the top of the page. The graphs below show how the density changes across the selected range. That helps users see whether the current point is near the low end, the middle, or the high end of the expected range.

What each part of the interface means

Screen element	What it shows	Why it matters
Units	Imperial or metric	Sets the whole calculator to one system
Material	The selected copper-based metal or alloy	Controls the base density value
Temperature	Working temperature of the material	Shows how the value changes with heat or cold
Pressure	Working pressure	Gives a more complete reference condition
Density	Mass per unit volume	Main number for weight checks
Specific volume	Volume per unit mass	Useful when the user thinks in reverse terms
Graph 1	Density versus temperature	Shows the temperature trend clearly
Graph 2	Density versus pressure	Shows the pressure trend clearly
Screenshot button	Captures the current view	Useful for saving or sharing the result

Density table in imperial units

The table below gives a practical quick-reference view in imperial units. It is useful for American users who work in pounds and feet. These values are common planning numbers, not lab-certified results for a specific batch.

Material	Density, lb/ft³	Density, lb/in³	Typical use
Pure copper	559.35	0.323	Electrical parts, tubing, bus bars
Yellow brass L63	528.76	0.306	Fittings, valves, hardware
Red brass	549.36	0.318	Decorative parts, plumbing pieces
Tin bronze	543.12	0.314	Bushings, bearings, marine hardware
Aluminum bronze	474.63	0.275	High-strength wear parts
Beryllium bronze	515.27	0.298	Springs, electrical contacts
Cupronickel MN19	555.59	0.321	Coins, marine parts, heat exchangers
Constantan	555.59	0.321	Resistance wire, sensors
Manganin	524.51	0.303	Precision resistors, test parts

Density table in metric units

This version is useful when the project sheet, supplier note, or workshop record uses metric values. The calculator can switch to this system instantly, but the table is helpful as a quick reference.

Material	Density, kg/m³	Specific volume, m³/kg	Typical use
Pure copper	8960	0.000112	Electrical parts, tubing, bus bars
Yellow brass L63	8470	0.000118	Fittings, valves, hardware
Red brass	8800	0.000114	Decorative parts, plumbing pieces
Tin bronze	8700	0.000115	Bushings, bearings, marine hardware
Aluminum bronze	7600	0.000132	High-strength wear parts
Beryllium bronze	8250	0.000121	Springs, electrical contacts
Cupronickel MN19	8900	0.000112	Coins, marine parts, heat exchangers
Constantan	8900	0.000112	Resistance wire, sensors
Manganin	8400	0.000119	Precision resistors, test parts

Quick comparison table

Material	How it feels by density	Simple memory trick	Why it gets used
Pure copper	Heavy and dense	Classic copper weight	Conductivity, heat transfer, tubing
Yellow brass L63	Lighter than copper	Common hardware brass	Machinable, attractive, durable
Red brass	Close to copper, slightly lighter	Reddish brass look	Plumbing and decorative parts
Tin bronze	Heavy, solid, and durable	Strong bronze feel	Wear parts and marine work
Aluminum bronze	Still heavy, but noticeably lighter	Strong bronze with lower weight	Strength and corrosion resistance
Beryllium bronze	Dense and springy	Contact and spring alloy	Electrical contacts, springs
Cupronickel MN19	Heavy and balanced	Coin and marine alloy	Coins, seawater resistance
Constantan	Similar to cupronickel in feel	Stable resistance alloy	Test equipment, resistance parts
Manganin	Moderate density, useful in precision work	Measurement alloy	Precision resistors and controls

Quick conversion table

From	To	Formula	Notes
kg/m³	lb/ft³	ρimp = ρmetric × 0.06243	Imperial density display
lb/ft³	kg/m³	ρmetric = ρimp × 16.0185	Metric density display
m³/kg	ft³/lb	νimp = νmetric × 16.0185	Specific volume conversion
ft³/lb	m³/kg	νmetric = νimp × 0.06243	Specific volume conversion
°C	°F	°F = °C × 9 / 5 + 32	Temperature conversion
°F	°C	°C = (°F – 32) × 5 / 9	Temperature conversion
MPa	psi	psi = MPa × 145.0377	Pressure conversion
psi	MPa	MPa = psi / 145.0377	Pressure conversion

Simple formulas used by the calculator

The calculator stays easy to follow because the main relationships are simple.

Density:

ρ = m / V

Specific volume:

ν = 1 / ρ

Mass from density and volume:

m = ρ × V

Volume from mass and density:

V = m / ρ

These formulas explain the results on the screen in a plain way. Density tells how much mass fits in a certain volume. Specific volume tells how much volume belongs to a unit of mass. That is the basic idea behind the result table.

A more detailed formula behind the trend line

The graphs use a simple trend model so the user can see how density changes with temperature and pressure.

$$\rho = \rho_{20} \cdot \frac{1}{1 + \beta_T (T – 20)} \cdot$$
$$ \cdot\left(1 + \frac{P – 0.1}{K}\right)$$

This is not there to make the page technical. It just helps explain why the line bends a little when temperature changes and shifts a little when pressure changes.

Imperial example with real numbers

Imperial mode is the default, so here is a simple example using American-style units.

Suppose the selected material is pure copper. The calculator shows about 559.35 lb/ft³. That means 1 cubic foot of copper weighs about 559.35 pounds.

To find the specific volume, use the inverse: ν = 1 / 559.35 = 0.001788 ft³/lb

That means 1 pound of copper occupies about 0.001788 cubic feet.

Now compare that with yellow brass L63. The density is lower, about 528.76 lb/ft³. That means a brass part of the same size will usually weigh less than a copper part. That difference matters in fittings, plumbing parts, and machine work.

Now compare copper with aluminum bronze. Aluminum bronze is lighter than copper and still strong, which is why it is often chosen when weight, strength, and wear resistance all matter together.

The calculator makes these comparisons fast. No separate conversion sheet is needed. No manual unit switching is needed. The whole screen stays in the same system.

How to read the graphs

The left graph shows density versus temperature at the current pressure. The right graph shows density versus pressure at the current temperature. A point marks the current operating condition.

If the temperature graph slopes down, that means density is dropping as temperature rises. That is normal behavior for these materials. If the pressure graph slopes up, that means density increases with pressure. That is also normal.

When to use imperial and when to use metric

Imperial is the best choice for many American jobs. It keeps the calculator in pounds, feet, Fahrenheit, and psi, which matches how a lot of shop notes and field references are written in the United States.

Metric is useful when the supplier sheet, project note, or technical reference already uses kg/m³, °C, and MPa. It is also useful when the result needs to be copied into a metric document.

The main rule is consistency. Use one system from start to finish. That is exactly why the unit selector changes the whole page. It keeps the values aligned and avoids a mix of unit systems.

Common situations where this calculator helps

Use case	What the calculator helps with	Why it saves time
Comparing copper and brass	Shows which material is heavier for the same size	Useful in fittings, hardware, and machining
Choosing a bronze alloy	Shows how different bronze types compare	Helps match the material to the job
Checking electrical parts	Helps estimate weight of copper-based parts	Useful in layout and transport planning
Planning a shop order	Helps estimate density before cutting or forming	Reduces guesswork
Reading a material note	Shows the expected density in the chosen unit system	Makes quick checks easy
Saving a result	Captures the current settings and output	Good for records and sharing

Practical tips for better use

Pick the correct metal first. That matters more than any other setting, because the density differences between copper, brass, and bronze can be large enough to matter in real work.

Stay in one unit system for the whole task. Imperial mode is already set up for American use, so there is no need to change it unless the project calls for metric output.

Use the temperature field to match the actual condition. A material at a hot shop and a material at room temperature will not always show the same reference number.

Use the pressure field as part of the full picture. The effect is usually small, but the calculator includes it so the result and graph stay consistent.

Use the screenshot button when the result needs to be saved for later. That is faster than copying each number by hand.

Why this calculator is useful in real life

This tool keeps the process simple. A user does not need to scroll through a huge table or work through a complicated setup. The material list is ready. The unit selector controls everything. The result is shown clearly. The graphs are there for a quick visual check.

That makes the calculator practical for busy work. A machinist can compare alloys. A designer can check the weight of a part. A buyer can sanity-check a material choice before ordering. A technician can save a result and move on.

The real value is speed without confusion. The calculator gives the answer in a clean format, and the user stays in control of the unit system from the start.

Final take

This copper, brass, and bronze density calculator is a practical reference tool for everyday use. It opens in imperial mode, which fits American workflows well, but metric is available whenever needed. It shows density, specific volume, and trend graphs in one place. It makes material comparison fast and easy, especially when the job depends on weight, fit, or planning.

References

• Davis, J.R. Copper and Copper Alloys. ASM International, 2001.
• ASM Handbook, Volume 2: Properties and Selection: Nonferrous Alloys and Special-Purpose Materials.
• Copper Development Association (CDA). Copper Alloy Data Sheets.
• European Copper Institute. Copper and Copper Alloy Properties.
• MatWeb Material Property Database.
• Engineering Toolbox. Densities of Metals and Alloys.
