Interactive Soil and Sand Density Table

Soil and sand look simple until the numbers start to matter. A pile of dry sand, a wet mix, compacted fill, loose gravel, and clay can all look similar from a distance, yet each one weighs differently, settles differently, and behaves differently in a truck bed, a bin, a trench, or a storage pile. That is why a density table for soil and sand is useful. It gives a quick way to compare common materials without digging through long engineering sheets or switching between systems by hand.

🎓 This calculator is built for users who need a fast answer, not a classroom lecture. The goal is clear: choose a material, set temperature and pressure, and read the density and specific volume right away. The interface is simple on purpose. A single unit selector changes the whole screen. Imperial is the default, so the tool opens in °F and psi, with results shown in lb/ft³ and ft³/lb. That makes it easy for users who work in American units every day.

The useful part is not just the number at the top. The graphs show how the selected material changes when temperature or pressure changes. That helps users spot the trend, compare similar materials, and avoid guessing when conditions are different from the standard point.

What this calculator is for

The calculator is a quick reference tool for soil, sand, gravel, clay, loam, peat, slag, and ash. It is helpful when a project needs a density check for fill, excavation, hauling, packing, or storage. It also helps when comparing dry and wet versions of the same material, or when looking at how compaction changes the result.

🧱 This matters in real work because volume and weight do not always behave the way people expect. A loose sand pile takes up more space than compacted sand. Wet clay is heavier than dry clay. Gravel may feel open and airy, but it can still add up to a heavy load. A quick density table saves time and makes planning easier.

Specific volume is shown too. That is the space taken by 1 unit of mass. Some users think in density, while others think in how much room a material will occupy. Both are useful, and both are shown together so the user does not have to convert anything by hand.

How to use the calculator

Choose the material from the list. Set the unit system. Set the temperature. Set the pressure. Read the result table. Check the graphs if the trend matters.

That is enough for most users. There is no extra setup and no need to run separate calculations. As soon as the values change, the result updates.

Why density matters for soil and sand

Density is the amount of mass packed into a given volume. A higher density means more mass in the same space. A lower density means less mass in the same space. That sounds simple, but it becomes very important in the field.

For example, a contractor may need to estimate how much material fits in a truck. A landscaper may need to compare fill types. A builder may want to know whether a soil mix is too light or too heavy for a job. A buyer may want to compare a wet load with a dry one. Density gives a fast answer to those questions.

Specific volume is the reverse view. If density rises, specific volume falls. If density falls, specific volume rises. This is useful when checking how much space a certain mass will take. That can help with storage, transport, and container planning.

Simple formulas used by the calculator

The formulas below are written in plain text and simple HTML form, so they are easy to scan.

Density

density = mass / volume

Specific volume

specific volume = 1 / density

Temperature effect: as temperature goes up, density usually goes down a little.

Pressure effect: as pressure goes up, density usually goes up a little.

That is the general idea the calculator follows. The exact values depend on the selected material, temperature, and pressure.

Imperial mode and metric mode

The calculator opens in imperial mode by default. That is often the easiest starting point for users in the United States. In imperial mode, temperature is shown in °F, pressure in psi, density in lb/ft³, and specific volume in ft³/lb. Metric mode is also available. It uses °C, MPa, kg/m³, and m³/kg. The important part is that the selector changes everything together. That keeps the screen consistent and avoids mixed units.

System	Temperature	Pressure	Density	Specific Volume
Imperial	°F	psi	lb/ft³	ft³/lb
Metric	°C	MPa	kg/m³	m³/kg
Default setting	°F	psi	lb/ft³	ft³/lb
Best for field work	Imperial	Imperial	Imperial	Imperial
Best for technical reports	Metric	Metric	Metric	Metric

What the material list covers

The material list includes common soils, sands, aggregates, and related loose materials. This is where the calculator becomes useful for everyday comparisons. Wet and compacted versions are included because they behave differently from dry or loose material.

Material	Type	Typical Density in Imperial Units	Common Use
Sand	Loose granular material	90 to 105 lb/ft³	Backfill, bedding, landscaping
Wet Sand	Moist granular material	100 to 115 lb/ft³	Fill, site work, compacted loads
Compacted Sand	Dense granular material	100 to 110 lb/ft³	Base layers, leveling, packing
Crushed Stone	Aggregate	110 to 120 lb/ft³	Road base, drainage, fill
Compacted Crushed Stone	Dense aggregate	120 to 130 lb/ft³	Subbase, packing, foundation support
Gravel	Aggregate	100 to 110 lb/ft³	Drainage, bedding, landscaping
Wet Gravel	Moist aggregate	110 to 120 lb/ft³	Heavy fill, handling estimates
Clay	Fine soil	100 to 110 lb/ft³	Earthwork, excavation, site grading
Wet Clay	Moist fine soil	110 to 120 lb/ft³	Heavy spoil, wet ground, trench work
Loam	Mixed soil	95 to 105 lb/ft³	Gardens, topsoil, landscaping
Sandy Loam	Mixed soil	90 to 100 lb/ft³	Planting, grading, backfill
Black Soil	Organic-rich soil	75 to 85 lb/ft³	Topsoil, soil improvement, planting
Regular Soil	General soil	85 to 95 lb/ft³	General fill, excavation, site work
Peat	Organic soil	25 to 35 lb/ft³	Soft ground, landscaping, soil blends
Slag	Industrial byproduct	80 to 90 lb/ft³	Fill, base material, special use
Ash	Light fine material	55 to 65 lb/ft³	Industrial fill, soil amendment, reference work

These ranges are practical reference values, not lab certificates. The calculator helps users compare materials quickly and see how current conditions change the result.

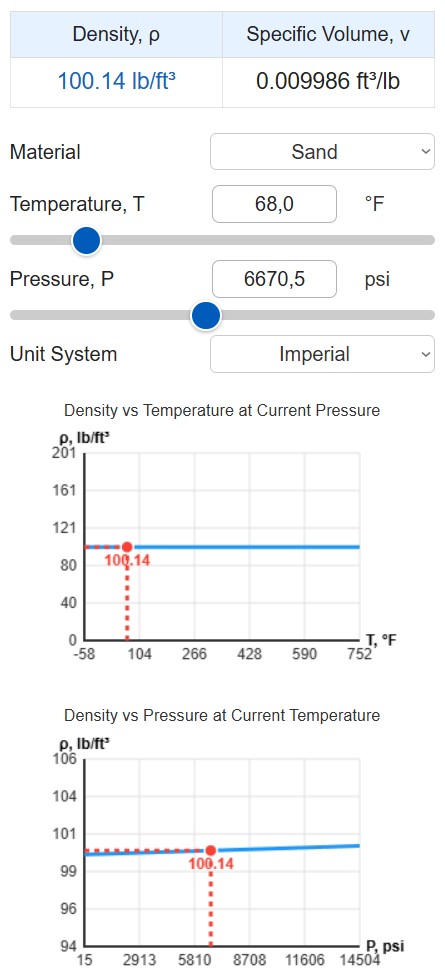

How to read the result table

The result table at the top shows 2 values.

Density, ρ is the main number. It tells how heavy the material is for its size.

Specific Volume, ν is the reverse of density. It tells how much room 1 unit of mass takes up.

In imperial mode, density appears in lb/ft³ and specific volume appears in ft³/lb. In metric mode, the same values appear in kg/m³ and m³/kg.

That makes the calculator useful for people who need a quick read without spending time on conversion. It also helps prevent mistakes that happen when mixed units are used in the same note or worksheet.

Why temperature matters even for soil and sand

Temperature changes are usually modest for soil and sand, but they still matter in a reference tool. Warm material may expand slightly and read a little less dense. Cold material may contract slightly and read a little more dense. Wet material can show a more noticeable change than very dry material.

This is one reason the calculator includes a graph for density versus temperature. The graph makes the trend easy to see. A gentle slope means the material stays fairly stable. A steeper slope means the material is more sensitive to temperature changes.

Why pressure is included

Pressure changes are also shown because compaction and load conditions can influence the result. The calculator treats pressure as part of the reading so users can compare different working conditions instead of assuming every sample behaves exactly the same.

That is useful for packed fill, loaded trucks, storage bins, and compacted materials. A load under more pressure will often show a slightly higher density. The graph helps show that change in a simple visual way.

Imperial example with real numbers

Here is a simple example using imperial units, since that is the default mode.

Example setup

• Material: Sand
• Temperature: 68 °F
• Pressure: 14.7 psi

At these settings, the calculator shows a density close to 99.89 lb/ft³ and a specific volume close to 0.0100 ft³/lb.

That means 1 ft³ of this sand weighs about 99.89 lb. It also means 1 lb of this sand takes up about 0.0100 ft³.

This is a very practical way to think about material weight. If a truck or bin has a certain volume, the density gives a fast estimate of how much mass may fit inside. If a job needs a certain mass, the specific volume gives a fast idea of how much space it will occupy.

Comparison examples users may find helpful

The best way to use the calculator is often to compare materials under the same conditions. That shows the difference very quickly.

Material	Suggested Test Point	What Usually Stands Out	Why It Helps
Sand	68 °F, 14.7 psi	Baseline granular value	Good starting reference
Wet Sand	68 °F, 14.7 psi	Heavier than dry sand	Useful for rainy site conditions
Compacted Sand	68 °F, 14.7 psi	Denser than loose sand	Helps with base and fill planning
Gravel	68 °F, 14.7 psi	Different flow and fill behavior	Useful for drainage and road base
Wet Gravel	68 °F, 14.7 psi	Heavier load condition	Good for transport estimates
Clay	68 °F, 14.7 psi	Finer, denser feel	Useful for digging and grading work
Wet Clay	68 °F, 14.7 psi	Noticeably heavier than dry clay	Important in muddy site conditions
Loam	68 °F, 14.7 psi	Middle-range soil density	Helpful for planting and topsoil checks
Peat	68 °F, 14.7 psi	Very light density	Useful when soft organic material is involved
Black Soil	68 °F, 14.7 psi	Organic-rich, lighter than mineral soil	Good for landscape and soil mix work

How the graphs help

The calculator has 2 graphs. The first graph shows density versus temperature at the current pressure. The second graph shows density versus pressure at the current temperature. These graphs are there to make the trend obvious without forcing the user to read a full technical chart.

That is helpful when checking whether a material stays stable across a range or changes faster than expected. A smooth line usually means the material is predictable. A more noticeable slope means the material is more sensitive to the selected condition.

For many users, the graph is the quickest way to understand whether a material is staying close to its base value or moving away from it.

💻 This tool is especially useful during site work, material ordering, fill planning, and fast comparison of soil and sand types. It is also useful when a user needs a quick number in imperial units and does not want to convert from metric first. The calculator can help with excavation estimates, delivery planning, stockpile checks, and simple educational reference work. It is also a handy way to compare dry versus wet materials or loose versus compacted materials.

Common mistakes to avoid

There are a few easy mistakes that can lead to confusion.

Using the wrong unit system can make a value look completely different from what was expected. Comparing different materials at different temperatures can make the results hard to trust. Forgetting that density and specific volume are opposites can also create a wrong reading at a glance. Keeping the same conditions for each material makes the comparison much cleaner.

The unit selector helps a lot because it keeps the whole interface in one system. That means fewer chances to mix values and fewer chances to misread the result.

This calculator is a fast, practical reference for soil, sand, gravel, clay, loam, and related materials. It shows density and specific volume, lets the user switch between imperial and metric, and updates the whole interface at once. Imperial is the default, so the tool opens in a format that works well for American users right away.

The main value is simple. Pick a material, set the conditions, read the result, and use the graph if the trend matters. That is enough for most everyday jobs.

References

• USDA Soil Survey and soil texture reference materials
• Engineering ToolBox bulk density tables
• ASTM material and aggregate reference data
• CRC Handbook of Chemistry and Physics
• Perry’s Chemical Engineers’ Handbook
• Standard geotechnical and civil engineering reference tables
• Common construction material density guides
