Complex Geometry Resistance Calculator

Electrical resistance is a foundational concept in both practical electronics and heavy industrial engineering. In standard applications, calculating resistance is straightforward. Standard wires, traces, and cables have uniform cross-sections, meaning they maintain the exact same width and height from start to finish. For these uniform shapes, basic textbook equations work perfectly. However, real-world engineering often demands custom components. Designers regularly use tapered busbars, stepped grounding rods, hollow tubes, and specialized metal sheets to fit tight spaces or optimize heat dissipation.

When a conductor changes shape along its length, traditional formulas fall short. The electrical current encounters varying levels of restriction as it flows through different sections of the component. Manually calculating the total resistance of these irregular profiles requires complex calculus and geometric segmentation. This online tool eliminates that tedious math. It provides an immediate, highly accurate calculation of electrical resistance for non-standard metal shapes, allowing for rapid prototyping and reliable system design.

What Makes Metal Shapes Structurally Complex

🧱 A complex conductor is any metallic component where the cross-sectional area changes, shifts, or contains voids along the path of the electrical current. In a standard copper wire, the current flows smoothly down a uniform cylinder. The electrical bottleneck is identical at millimeter one and millimeter one hundred. In a complex conductor, the bottleneck changes constantly.

Consider a tapered busbar used in power distribution centers. To save weight and material, the busbar might be wide where it connects to a primary transformer and narrow down as it distributes power to smaller fuses. Because the physical space available for electrons narrows down, the resistance per unit of length increases continuously along the taper. Another common example is a stepped cylinder, often found in heavy machinery or specialized sensors, where a thick metal rod suddenly drops to a smaller diameter. This sudden transition creates a distinct localized change in resistance and can alter current distribution patterns.

Hollow conductors, such as copper pipes used in high-frequency induction heating or high-voltage cooling systems, add another layer of complexity. Here, the current is restricted to an outer ring, meaning the interior void must be subtracted from the total geometric volume. Calculating the exact physical path available for electrical conduction requires precise inputs, which this tool handles seamlessly.

A Complete Guide on How to Use the Calculator

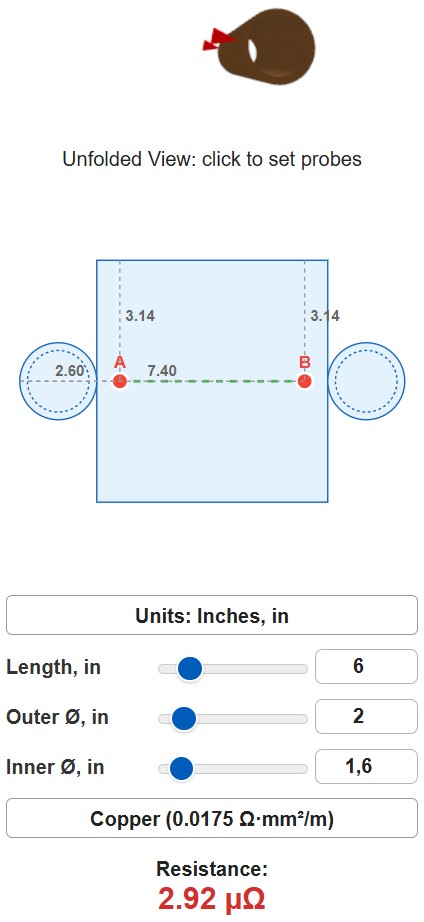

This software tool is built to turn complex geometric profiles into immediate numerical results. Users do not need to perform manual integration or look up material resistivity coefficients. The workflow is designed to be sequential and intuitive.

Selecting Your Base Material

The first step is identifying the metal used for the conductor. The calculator includes a comprehensive drop-down selection of industrial metals and alloys. Selecting a material automatically loads its specific electrical resistivity and temperature coefficient into the calculation engine. If a custom alloy or a specific proprietary blend of metal is being used, a custom input field allows manual entering of the resistivity value.

Defining the Geometric Profile

Users must choose the geometric category that best matches their physical component. The tool supports several non-uniform profiles:

• Linear Tapered Rectangles: Heavy plates that smoothly narrow in width or thickness from one end to the other.
• Stepped Cylinders: Concentric rods with sudden changes in diameter along the longitudinal axis.
• Hollow Pyramids and Cones: Specialized transition pieces often found in aerospace or specialized grounding systems.
• Concentric Tubes: Pipes or sleeves with an internal hollow area.

Entering Physical Dimensions

Once the shape is selected, the interface displays the exact dimensional fields required for that specific profile. Users can toggle between metric and imperial unit systems depending on their design blueprints. For a tapered shape, fields for initial width, final width, and uniform thickness will appear alongside the total length. Accuracy is vital here, as subtle variations in thickness have a significant impact on final resistance values.

Accounting for Operating Temperature

Metals do not maintain a stable resistance across different thermal states. As a metal heats up, its atoms vibrate more intensely, creating greater obstacles for traveling electrons. The calculator features a temperature adjustment section. Users enter the ambient or expected operational temperature of the system. The tool automatically adjusts the base room-temperature resistivity to match the real-world thermal environment, ensuring the output is realistic for actual operating conditions.

Interpreting the Output Results

After clicking the calculation button, the tool provides several key values. The primary output is the total resistance of the component expressed in ohms, milliohms, or microohms. Additionally, the tool displays the total volume of the material and the estimated weight, which assists in logistical and cost planning. If a specific current load is entered, the calculator will also display total voltage drop and expected power loss in watts, helping to prevent system overheating.

Material Properties Reference Guide

To assist in material selection and comparative design, the following reference table details the electrical properties of common industrial metals. These values are recorded at a standard reference temperature of 20 degrees Celsius, which equals 68 degrees Fahrenheit.

Material Name	Resistivity, ohm-meters	Temperature Coefficient, per degree C
Silver Pure	0.0000000159	0.00380
Copper Annealed	0.0000000172	0.00393
Copper Hard Drawn	0.0000000177	0.00382
Gold Pure	0.0000000244	0.00340
Aluminum Commercial	0.0000000282	0.00390
Tungsten	0.0000000560	0.00450
Zinc Pure	0.0000000590	0.00370
Nickel Pure	0.0000000699	0.00600
Iron Pure	0.0000001000	0.00500
Platinum	0.0000001060	0.00392
Tin Pure	0.0000001090	0.00420
Lead Pure	0.0000002200	0.00390
Manganin Alloy	0.0000004300	0.00001
Constantan Alloy	0.0000004900	0.00001
Nichrome Standard	0.0000011000	0.00040
Stainless Steel 304	0.0000007200	0.00094
Stainless Steel 316	0.0000007400	0.00094
Yellow Brass	0.0000000700	0.00200
Phosphor Bronze	0.0000001100	0.00180
Carbon Steel Typical	0.0000001600	0.00300

Geometric Parameters and Configurations

Different profiles require specific dimensional data points. The table below outlines what measurements are necessary for each supported configuration to help users prepare their data beforehand.

Shape Profile	Required Dimensional Inputs	Primary Engineering Use Case
Flat Tapered Bar	Length, Thickness, Base Width, Tip Width	Heavy-duty power distribution busbars
Stepped Solid Rod	Section 1 Length, Section 1 Diameter, Section 2 Length, Section 2 Diameter	Mechanical shafts used as electrical grounds
Hollow Round Tube	Total Length, Outer Diameter, Inner Diameter	High-voltage liquid-cooled conductors
Conical Solid Transition	Total Length, Base Diameter, Tip Diameter	Lightning rod terminals and antenna mounts
Square Hollow Sleeve	Total Length, Outer Width, Inner Width, Wall Thickness	Structural protective shielding and conduit tracks

Fundamental Formulas for Non-Standard Conductors

To appreciate how the calculator operates, it helps to review the core physics principles involved. For a perfectly uniform conductor, the standard resistance equation is clean and direct:

R = ρ × L / A

In this expression, R equals the final electrical resistance in ohms, ρ represents the material resistivity in ohm-meters, L is the total length in meters, and A is the cross-sectional area in square meters.

When the shape changes continuously, the cross-sectional area, A, becomes a variable that depends on the specific position along the length of the conductor. To find the exact total resistance, engineers must integrate this formula along the entire span. For example, in a rectangular conductor that tapers linearly in width from an initial width, w₁, to a final width, w₂, while keeping a constant thickness, t, the area at any point can be defined mathematically. The resulting integral yields a specialized formula:

R = ρ × L × ln(w₁ / w₂) / [t × (w₁ – w₂)]

Here, ln represents the natural logarithm. This specific logarithmic relationship demonstrates why simple averaging of the end dimensions fails to provide correct engineering answers, especially when the taper is aggressive.

When operating temperatures rise above or fall below the standard baseline of 20 degrees Celsius, the calculator adjusts the resistivity value using a linear thermal correction formula:

ρ_T = ρ₀ × [1 + α × (T – T₀)]

In this equation, ρ_T is the altered resistivity at the target operational temperature, ρ₀ is the original resistivity value at room temperature, α is the material temperature coefficient, T is the actual operational temperature, and T₀ is the reference baseline temperature of 20 degrees Celsius.

Practical Imperial Measurement Example

To demonstrate the utility of the calculator, let us look at a real-world design scenario using standard American imperial measurements. Imagine an industrial power distribution setup that requires a custom-shaped tapered busbar made from commercial annealed copper. The blueprint lists the following specifications for the physical part:

• Total Component Length: 18 inches
• Uniform Material Thickness: 0.25 inches
• Starting Base Width: 4.0 inches
• Ending Tip Width: 2.0 inches
• Target Operational Temperature: 113 degrees Fahrenheit

Manually calculating this part requires converting all imperial dimensions into metric values, adjusting for the thermal variance, running the logarithmic taper formula, and then converting back to industrial electrical units. Let us walk through how the calculator processes this information systematically.

First, the tool converts the operational temperature. A value of 113 degrees Fahrenheit converts directly to 45 degrees Celsius. The temperature difference above the standard room baseline is calculated by subtracting 20 from 45, leaving a net increase of 25 degrees Celsius.

Second, the calculator updates the resistivity of the copper. The base room-temperature value for annealed copper is 0.0000000172 ohm-meters, and its thermal coefficient is 0.00393. Applying the thermal equation gives the updated resistivity value:

ρ₄₅ = 0.0000000172 × [1 + 0.00393 × 25]

ρ₄₅ = 0.0000000172 × [1 + 0.009825]

ρ₄₅ = 0.000000017369 ohm-meters

Third, the tool converts the physical dimensions from inches to meters to match the standard unit system of the physics equations. The calculations convert the dimensions as follows:

• Length: 18 inches becomes 0.4572 meters
• Thickness: 0.25 inches becomes 0.00635 meters
• Starting Width: 4.0 inches becomes 0.1016 meters
• Ending Width: 2.0 inches becomes 0.0508 meters

Fourth, these processed values are entered directly into the specialized linear taper resistance equation:

R = 0.000000017369 × 0.4572 × ln(0.1016 / 0.0508) / [0.00635 × (0.1016 – 0.0508)]

The calculation evaluates the components step by step:

• The ratio of the widths is exactly 2.0, and the natural log of 2.0 equals 0.693147
• The bottom subtraction yields a width difference of 0.0508 meters
• Multiplying the bottom terms gives a value of 0.00635 × 0.0508, which equals 0.00032258
• The top terms multiply out to 0.000000017369 × 0.4572 × 0.693147, which equals 0.000000005504

Dividing the top product by the bottom product gives the final component resistance:

R = 0.000000005504 / 0.00032258

R = 0.00001706 ohms

The calculator displays this small decimal number in a more practical format for electrical technicians, presenting it as 17.06 microohms. This value lets engineers accurately assess power losses when running thousands of amperes through the busbar system.

Frequently Asked Technical Queries

Can this calculator handle shapes that curve instead of change linearly?

This specific tool focuses on linear transitions, such as straight tapers and clean steps. If a component features a sweeping or parabolic curve, the resistance must be estimated by breaking the shape down into multiple smaller linear segments and calculating each individually.

Why is the calculated resistance different from a real-world multimeter reading?

Manual readings often include contact resistance, which occurs at the physical junction where the test probes touch the metal piece. Contact resistance adds a small amount of extra opposition to the current path. Furthermore, manufacturing tolerances mean a physical part might be slightly thinner or thicker than the ideal dimensions entered into the calculator.

What is skin effect, and does this tool account for it?

Skin effect is a behavior seen in alternating current systems where high-frequency signals tend to travel along the outer surface or skin of a conductor rather than flowing evenly through the entire center. This tool calculates direct current resistance, which assumes an even distribution of current throughout the entire available cross-section of the metal. For standard industrial power supplies operating at 50 or 60 hertz, direct current resistance values remain highly accurate guidelines.

How does material purity affect the accuracy of the calculation?

The preloaded values in the tool assume standard commercial grade purities. If an industrial component uses a low-cost recycled alloy or an unregulated supply of metal, trace impurities will disrupt the crystalline structure of the material. These internal disruptions increase the actual resistance above the ideal values listed in standard engineering handbooks.
