Forklift Capacity and Balance Calculator

This tool, forklift_calc, gives a rapid estimate of a forklift stability limit for a given reach. It calculates the maximum safe load at the specified load center, compares that value with the rated capacity based on the manufacturer chart, and provides margin and counterweight guidance. Use the calculator for fast checks and setup decisions. It does not replace manufacturer data or formal engineering assessments.

Input fields and what they mean

• Load mass in kilograms — the actual mass of the cargo.
• Load center in millimetres — distance from the fork face to the cargo centre of gravity. This determines overturning moment.
• Fork length in millimetres — physical fork length. Longer forks increase effective reach.
• Lift height in millimetres — higher lifts reduce stability and require derating.
• Rated capacity in kilograms — manufacturer declared load at the rated load center.
• Rated load center in millimetres — the load center the rated capacity refers to.
• Machine mass in kilograms — total mass of the forklift including counterweight.
• Counterweight lever in millimetres — distance from the fork face to the centre of mass of the machine or counterweight.
• Wheelbase in millimetres — used to estimate counterweight lever when it is not supplied.
• Attachment type — extended forks, side shift, rotator and similar items that shift the effective load centre.
• Safety margin in percent — requested reserve before the calculated limit is considered warning level.

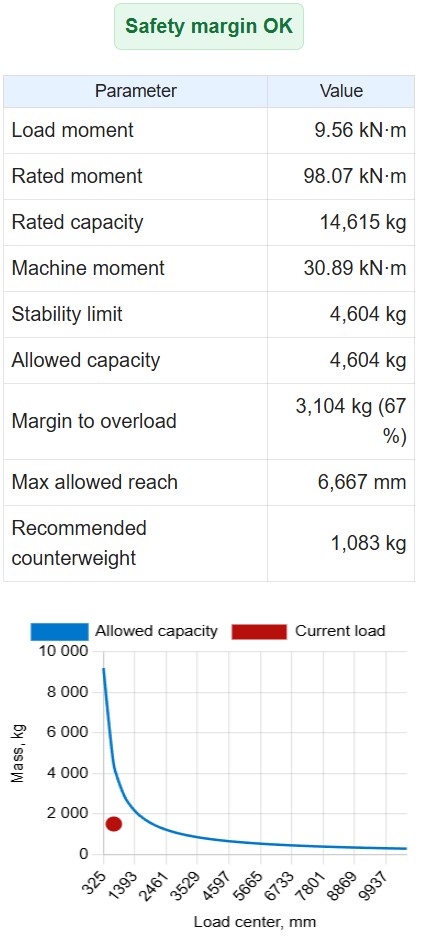

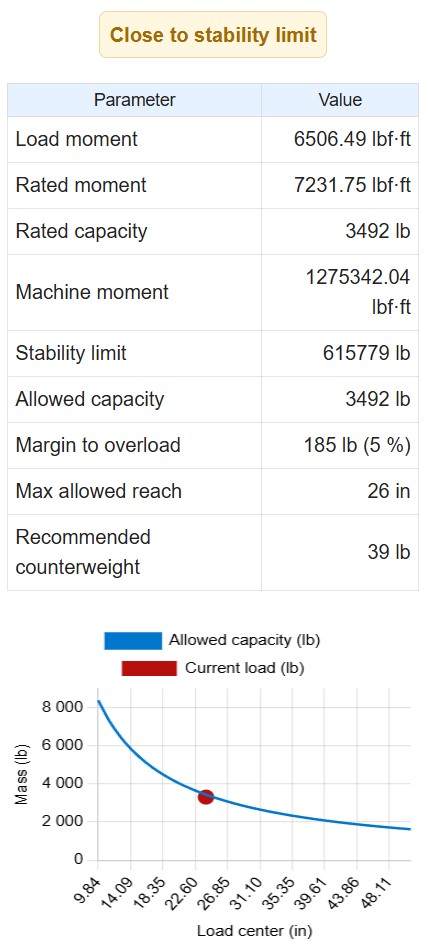

How the calculation works

The model uses a static moment balance around the front support plane. Main steps are:

1. Compute load moment as load mass multiplied by load center.
2. Compute passport moment as rated capacity multiplied by the rated load center.
3. Estimate machine moment as machine mass multiplied by the counterweight lever.
4. Derive two capacity limits. One limit comes from the passport moment divided by the current load center. The other limit comes from the machine counter moment divided by the load center. The smaller value is the static allowable load.
5. Apply a height correction factor to reduce allowable load at tall lifts. High lifts and dynamic actions reduce practical reserves.

Key formulas

Load moment

M_load = m_load × l

Passport moment

M_passport = G_rated × l_rated

Capacity from manufacturer data

G_by_passport = M_passport / l

Machine counter moment

M_machine = m_machine × l_counter

Capacity from machine stability

G_by_machine = M_machine / l

Final allowed load

G_allowed = min(G_by_passport, G_by_machine) × k_height

Height factor k_height is less than one for tall lifts and reduces allowable load accordingly

Worked example

Change the numbers to match your vehicle and attachments. Example values below are different from common tutorials so you can verify independence from prior examples.

• Load mass 1200 kilograms
• Load center 650 millimetres
• Rated capacity 2500 kilograms at rated load centre 450 millimetres
• Machine mass 4200 kilograms, counterweight lever 850 millimetres
• Lift height 3000 millimetres

Passport moment

M_passport = 2500 × 450 = 1 125 000 kg·mm

Capacity by passport at current reach

G_by_passport = 1 125 000 / 650 = 1730.8 kg

Machine moment

M_machine = 4200 × 850 = 3 570 000 kg·mm

Capacity by machine at current reach

G_by_machine = 3 570 000 / 650 = 5492.3 kg

Height correction

reduction = (3000 − 1000) / 20000 = 0.10

k_height = 1 − reduction = 0.90

Final allowed load

G_allowed = min(1730.8, 5492.3) × 0.90 = 1730.8 × 0.90 = 1557.7 kg

Load moment for the actual cargo

M_load = 1200 × 650 = 780 000 kg·mm

Margin to overload

Margin = 1557.7 − 1200 = 357.7 kg

Margin percent = 357.7 / 1557.7 × 100 = 23.0 percent

Maximum allowed reach for the given cargo mass

max_reach = M_passport / m_load = 1 125 000 / 1200 = 937.5 mm

Recommended counterweight to restore stability roughly

counter_req = m_load × l / l_counter = 1200 × 650 / 850 = 917.6 kg

Practical guidance

• Always check calculator outputs against the manufacturer’s load chart for the exact machine and configuration.
• Extended forks substantially increase overturning moment. As a rule of thumb reduce allowable load by five to ten percent per extra 100 millimetres of fork length.
• Higher lifts call for derating. Use the height correction to estimate reduced capacity and operate slower when the load is elevated.
• If margin to overload is small consider adding counterweight, shortening reach, moving the load back, or lowering the lift height.
• Never use this tool to justify lifting people or personnel platforms. Follow strict manufacturer and regulatory instructions for personnel handling.

Operational notes and maintenance

Dynamic events matter more than static moments. Abrupt turns, stops, travel on slopes and uneven surfaces generate inertial forces that shift the system centre of gravity toward the limit of stability. Lift cycles impose repeated loads that can accelerate fatigue in welds and carriage guides. Regular visual inspection of welds, carriage rails and fork condition helps detect wear and cracks early. Check hydraulic oil temperature when running long lift cycles with large loads, as overheating reduces system efficiency and shortens pump life.

Reference tables and typical ranges

Parameter	Typical range
Rated load center	420 to 560 millimetres
Warehouse forklift mass	1800 to 4800 kilograms
Counterweight lever approximate	700 to 1100 millimetres
Effect of extra forks	Every +100 millimetres reduces capacity by about 5 to 10 percent

Short checklist before every lift

• Confirm rated capacity at the machine’s specified load centre.
• Account for attachments and extra fork length when entering load centre.
• Reduce speed and avoid sharp manoeuvres with an elevated load.
• Keep a safety margin. A twenty percent reserve is a practical starting point for most general handling.

This calculator is a practical aid for quick stability checks and setup choices. Use it to compare options, test the effect of attachments, and screen potentially unsafe lifts. For final decisions and certification follow manufacturer data, safety rules and consult a qualified engineer when margins are small or conditions are unusual.
