The truck load calculator is a practical web utility that quickly shows how much cargo will fit inside a truck or container by volume and by weight and displays an interactive three dimensional packing preview. It is tuned for rectangular loads such as boxes, crates and pallets and runs on mobile devices without installation. The tool speeds up planning, reduces guesswork and produces a printable visual plan for loading teams.
Table of Contents
What the tool does — summary of features
- Automatically arranges items inside the cargo space and shows a layered three dimensional packing plan.
- Reports occupied volume and percent fill of the cargo space.
- Calculates total mass and flags if the load exceeds the payload limit.
- Estimates the longitudinal centre of gravity to help check load distribution.
- Lists items that could not be placed and explains why.
- Exports a snapshot image of the result for documentation or for loading crews.
How to use the truck loading tool
- Enter the internal cargo dimensions in millimetres: length, width and height.
- Set the maximum allowable payload in kilograms.
- Add positions to the item list. For each position enter a name, length, width, height in millimetres, weight per unit in kilograms and the quantity required.
- Press Calculate to get a detailed table and a 3D visualisation of the proposed layout.
- If some items did not fit the program will warn and list them. Adjust sizes, orientation or quantity and calculate again.
Always measure internal cargo space from a flat reference surface using the usable volume. Convert tape measure readings to millimetres and round to whole millimetres to avoid cumulative rounding errors when summing many items. Maintain consistent precision for weight entries. If you use whole kilograms for mass do not mix with grams, this simplifies verification against warehouse checklists.
Field descriptions and meaning
- Length, Width, Height — internal cargo dimensions to be used for packing.
- Max Payload — maximal permitted cargo mass for this vehicle or load case.
- Name — item label shown on the 3D view and in reports.
- L W H — dimensions of one unit of the item in millimetres.
- Mass — weight of a single unit in kilograms.
- Quantity — number of identical units to place.
If you work with pallets, enter one pallet size and the pallet mass, and use quantity in units. Do not substitute pallet positions or pallet length measures instead of unit counts because the automatic packer expects explicit unit counts. For irregular shapes provide a bounding box that fully contains the item and note internal voids or protrusions in the name field. This prevents the visualiser from placing an item where it would collide in reality.
Result contents — what you will see
- Occupied volume in cubic metres and percent of total cargo space.
- Total cargo mass of all placed items.
- Centre of gravity along the vehicle length as an indicative position for load balancing.
- List of unplaced items if any remain after packing attempts.

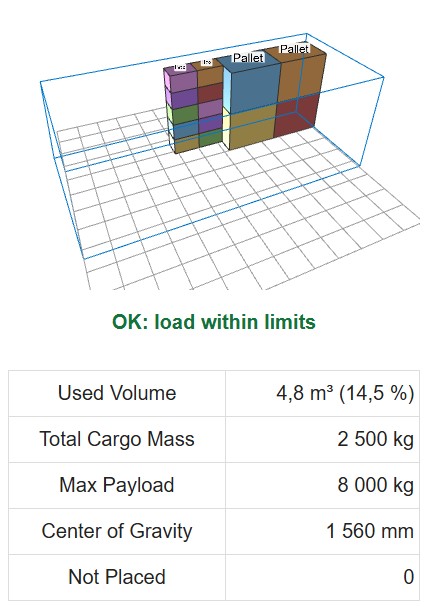

- Status indicator: OK, warning when volume is nearly full, danger if payload exceeded or items could not be placed.
- Interactive 3D view that supports rotation and zoom for visual checking.
📊 The packing algorithm stacks items in layers and prefers even support. If your load is fragile or contains items that must not be stacked mark them as single layer units in the item name so you can treat them as non stackable. For fragile goods provide separators and reduce usable height to account for required protective material. The visualiser does not know product fragility unless you indicate it.
Practical tips and known limits
- This tool creates approximate packing plans. Always verify physical restraint and stability before transport.
- For mixed height loads place smaller items on a flat base and ensure the upper item rests on the lower one on at least 60 percent of footprint area.
- The algorithm is layer oriented and does not run exhaustive combinatorial optimisation. For very dense or irregular packing manual adjustments or specialised optimisation software may be needed.
- Use internal dimensions for accurate results. External dimensions and wall thickness must be excluded from the inputs.
The computed centre of gravity is a longitudinal guideline. For axle load checks or structural verification use scale measurements or axle load calculation tools after loading. This visual calculator shows where mass shifts as you change the item mix but it does not replace weighing each loaded truck when strict regulations apply.
Common questions
Why did some items not fit?
Unplaced items indicate that the available space, stacking height or layout constraints prevented full placement. Reduce quantity, change orientation or split the load into multiple shipments.
Why is there an overload warning?
The warning appears when total placed mass exceeds the declared maximum payload. Reduce mass or reassign items to another vehicle to remove the alert.
How do I interpret the centre of gravity?
The position is shown as distance from the truck nose. Use it to judge fore and aft balance. For precise axle loads use dedicated axle load calculators or scales.
📝 Before finalising any plan check inputs for common mistakes such as swapped length and height, values entered in centimetres instead of millimetres or an extra zero in mass. If results look unexpectedly optimistic confirm you supplied internal dimensions rather than external shell sizes. When sending the plan to the driver annotate which allowances were used for gaps and protection so loading crews have clear instructions.
Final recommendations and practical rules
| Parameter | Recommendation or value | Notes |
|---|---|---|
| Common pallet size example | 1250 × 900 mm | Standard pallet variant used in many regions |
| Alternate pallet footprint | 1250 × 950 mm | Used in mixed shipments |
| US pallet reference | 1220 × 1020 mm | Common footprint in North America |
| Volume conversion | 1 000 000 000 mm³ equals 1 m³ | Use when converting mm units to cubic metres |
| Example cargo density range | 220 to 1150 kg/m³ | Light to dense goods |
| Safe stack support fraction | 0.6 to 0.8 | Aim for at least 75 percent where possible |
| Mass safety margin | 10 percent | Apply margin when planning for uncertain weights |
| Minimum side clearance | 25 to 45 mm | Prevents snagging and deformation during handling |
| Convert mm to m for output | Divide mm by 1000 | Volume mm³ divide by 1e9 |
The algorithm is not exhaustive for highly custom packing tasks. For irregular shapes, angled placements or mixed non stackable loads use the visual plan as a guideline and perform a small real world test with a few units to verify positions and stability. Adjust parameters and repeat until the physical test matches expectations. Document the chosen clearances and who performed the check alongside the exported image for traceability.
✍ Legal and insurance note. This calculator supplies a planning sketch and does not remove the responsibility to comply with transport and securing rules. For regulated cargo or hazardous materials follow official regulations and seek sign off from a qualified person.
A clear loading plan saves time and prevents damage, but real life safe loading relies on good pallet condition, even support and proper restraint. Always attach a short note to the exported image with the cargo space used, the date, who prepared the plan and what assumptions were applied to avoid misunderstandings at loading.
