This brief guide explains a practical drawbar calculator for rapid strength and load assessment in imperial units. The tool yields conservative estimates of vertical hitch load, inertial braking force, bending moment at the drawbar root and simple checks for bending and shear. Use it for early design choices when selecting tube diameter, wall thickness and material. The drawbar calculator gives fast, engineering grade results suitable for preliminary design and workshop checks.
Inputs used by the calculator
- Trailer weight in pounds — the trailer empty weight without payload.
- Payload in pounds — baggage, passengers and equipment added to the trailer weight.
- Tongue load share in percent — percent of total weight carried vertically by the hitch typically eight percent for many trailers.
- Drawbar working length in feet — distance from the control section at the root to the location where the vertical load effectively acts.
- Hitch height in feet — vertical position of the coupler from ground or reference plane.
- Deceleration level in g — braking deceleration multiple where 0.6 g represents a strong stop.
- Yield strength of material in ksi — specified yield for the tube material expressed in ksi.
- Safety factor — factor applied to yield for allowable stress checks.
- Tube outside diameter in inches — external diameter of the hollow drawbar tube.
- Wall thickness in inches — tube wall thickness for section properties.
- Inertia arm in feet — distance from inertial force application to the control section if it differs from the drawbar length.

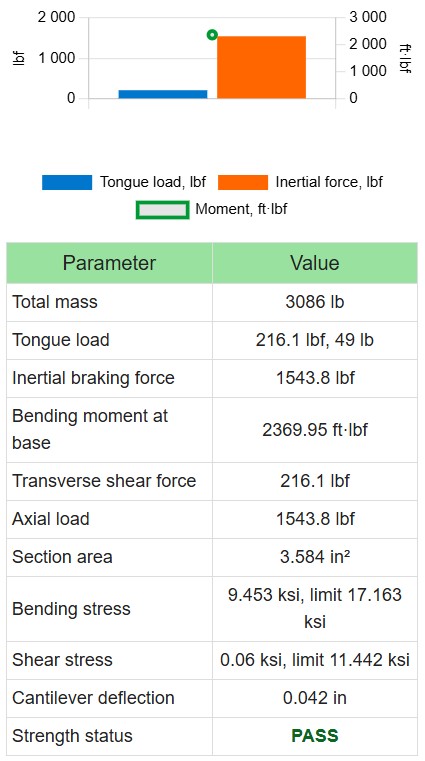

What the calculator returns
- Total mass in pounds.
- Vertical hitch load in pounds force and the equivalent mass for quick understanding.
- Inertial braking force in pounds force for the specified deceleration level.
- Bending moment at the drawbar root in foot pounds.
- Transverse shear and axial load at the control section.
- When tube geometry is supplied, section area, section modulus, second moment of area, bending stress, estimated shear stress, allowable stresses and cantilever deflection in inches or millimeters as noted.
- Concise recommendations for geometry changes, material upgrades or assembly checks.
Key formulas
All inputs are given as pounds and feet or inches. We treat weights as pounds force, lengths in inches or feet, moments initially in foot·pounds and then converted to inch·pounds for stress calculations. Use consistent units when applying formulas to get stresses in psi or ksi and deflection in inches.
- Total weight on tow vehicle M equals trailer weight plus payload, given in pounds force.
- Vertical hitch load Fv equals the total weight times the tongue share fraction. Example formula: Fv = M · p where p is the fraction of weight on the hitch.
- Inertial longitudinal force Fin equals total weight times deceleration expressed in multiples of g. Use Fin = M · a where a is the deceleration in g.
- Bending moment at the drawbar root M is the sum of the moment from the vertical hitch load and the moment from the inertial force. Use lengths in feet then convert to inches when needed. Formula: M = Fv · L + Fin · e with L and e in feet. Convert to inch·pounds by multiplying by 12.
- For a circular tube with outside diameter D and inside diameter d both in inches the second moment of area I in inches to the fourth is I = π/64 · (D⁴ − d⁴). The section modulus S equals S = I / (D/2). Cross sectional area A equals A = π/4 · (D² − d²).
- Bending stress σ in psi equals the bending moment in inch·pounds divided by section modulus in cubic inches. Formula: σ = M(in·lb) / S. Shear stress τ approximates transverse shear V divided by area A. Use τ ≈ V / A with V equal to Fv in pounds force.
- Cantilever tip deflection δ under an end load Fv with L converted to inches uses Young modulus E in psi. Formula: δ = Fv · L³ / (3 · E · I) where L is in inches, I in inches to the fourth and E for steel near 30,000,000 psi.
Worked example in imperial units
Input values
- Trailer weight 2500 lbf
- Payload 800 lbf
- Tongue share 8 percent
- Drawbar length 4.00 ft
- Inertia arm 1.00 ft
- Deceleration 0.6 g
- Tube outside diameter 3.00 in
- Wall thickness 0.120 in
- Material yield 50 ksi
- Safety factor 3.0
Step by step results
- Total static weight M equals 2500 plus 800, result 3300 lbf.
- Vertical hitch load Fv equals 0.08 times 3300, result 264.0 lbf.
- Inertial braking force Fin equals 0.6 times 3300, result 1980.0 lbf.
- Bending moment at the root using feet gives M = 264.0 times 4.00 plus 1980.0 times 1.00, result 3036.0 ft·lb. Convert to inch·pounds by multiplying by 12, M = 36,432 in·lb.
- Tubular section geometry, outside D = 3.00 in, wall t = 0.120 in, inner diameter d = 2.76 in. Cross sectional area A = π/4 · (D² − d²) ≈ 1.09 in².
- Second moment of area I = π/64 · (D⁴ − d⁴) ≈ 1.13 in⁴. Section modulus S = I / (D/2) ≈ 0.75 in³.
- Bending stress σ = M(in·lb) / S = 36,432 / 0.75 ≈ 48,576 psi, about 48.6 ksi. Allowable bending stress using 50 ksi yield and safety factor 3 gives σallow = 50 / 3 ≈ 16.7 ksi. The bending demand exceeds allowable by a large margin.
- Shear stress τ ≈ V / A = 264.0 / 1.09 ≈ 242.2 psi, about 0.242 ksi, well below a simple shear limit derived from the same safety factor.
- Cantilever tip deflection δ using L = 4.00 ft equals δ = Fv · L³ / (3 E I). Convert L to 48 in, use E ≈ 30,000,000 psi, I ≈ 1.13 in⁴, result δ ≈ 0.29 in. Check clearance and ride quality against this deflection.
Conclusions and immediate recommendations
- Bending stress demand far exceeds allowable. To meet strength requirements increase tube diameter or wall thickness, select a higher yield material, or increase the safety factor.
- Reducing drawbar length or reducing tongue share by better load distribution decreases bending moment and greatly reduces stress.
- Shear stress is small relative to allowable values in this example and is not the critical mode of failure.
- Perform fatigue checks for repeated dynamic loading and verify welds and attachments as these are common failure locations.
A bending stress above allowable implies increase of wall thickness or outside diameter or selection of higher yield steel. Doubling wall thickness or moving to a higher yield grade are standard corrective paths. Reducing drawbar length or redistributing payload to lower the tongue percent strongly reduces bending moment and stress. Shear checks often pass while bending fails because bending lever arm amplifies stresses. Pay special attention to welds and attachment plates which concentrate stresses.
Design notes and practical tips
- Always express and store internal calculations in consistent units. For chain checks use foot pounds for moments and inches for geometry when working exclusively in imperial.
- When specifying yield use the material certificate value and apply the chosen safety factor consistently to obtain allowable stress.
- Fatigue and impact loadings require additional factors. If the trailer is subject to frequent stops, highway impacts or towing off road include a fatigue analysis or increase safety factor.
- Inspect welds and fasteners visually and with non destructive checks where possible. Weld throat size and quality often govern the connection strength more than the tube wall itself.
- Prototype test with instrumented stops and log peak loads. Use real deceleration traces where available instead of a single conservative g level for most realistic design.
Quick reference formulas
| Quantity | Formula |
|---|---|
| Vertical hitch load Fv | Fv = total mass times tongue fraction reported as pounds force |
| Inertial force Fin | Fin = total mass times deceleration multiple g |
| Bending moment M | M = Fv times drawbar length plus Fin times inertia arm expressed in foot pounds |
| Section modulus W | W = I divided by outer radius with I from circular tube formula |
| Bending stress sigma | sigma = M divided by W |
| Cantilever deflection delta | delta = Fv times length cubed divided by three E I |
Conclusions and safe practice
Use the results as conservative first checks during sizing and selection of the drawbar profile. If bending stress exceeds allowable consider larger diameter, thicker wall, or higher yield material. Confirm critical designs with detailed finite element analysis, fatigue checks and physical testing. Always keep documentation of assumptions and conversion factors when sharing numbers with suppliers and fabricators. For final certification under regulatory rules use recognized standards and testing protocols.
Further reading
- Roark, Warren C. Formulas for Stress and Strain
- Shigley, Joseph E. Mechanical Engineering Design
- Spotts, Maurice F. Design of Machine Elements
- ASME Fatigue Design Handbook
- Megson, Thomas H. G. Structural and Stress Analysis
