A web tool for calculating cutting angles when joining workpieces at a specified inside or outside angle. Enter the desired angle between parts, the number of segments in the joint, and whether the joint is inside or outside. The calculator returns the required cut angle for each piece and provides a live visual preview of part orientation. The tool runs in the browser and is mobile friendly.
Table of Contents
Capabilities
- Compute individual cut angles for assemblies from two up to ten pieces.
- Handle both inside joints and outside joints consistently.
- Produce accurate, evenly distributed mitre angles for symmetric assemblies such as frames and polygons.
- Support compound cuts where both a mitre and a bevel are required.
- Export the visual layout as a PNG image for reference on the shop floor.
Basic formula
The basic cut angle per piece depends on the joint type. For an input angle θ and n pieces:
$$\alpha = \begin{cases}
\frac{\theta}{n}, & \text{inside joint} \\
\frac{360 – \theta}{n}, & \text{outside joint}
\end{cases}$$
Orientation and compound cuts
For compound cuts the saw needs two settings: the horizontal mitre and the vertical bevel. The calculator maps the desired plan angle and the assembly’s vertical relationship into the two saw adjustments.
| Symbol | Meaning |
|---|---|

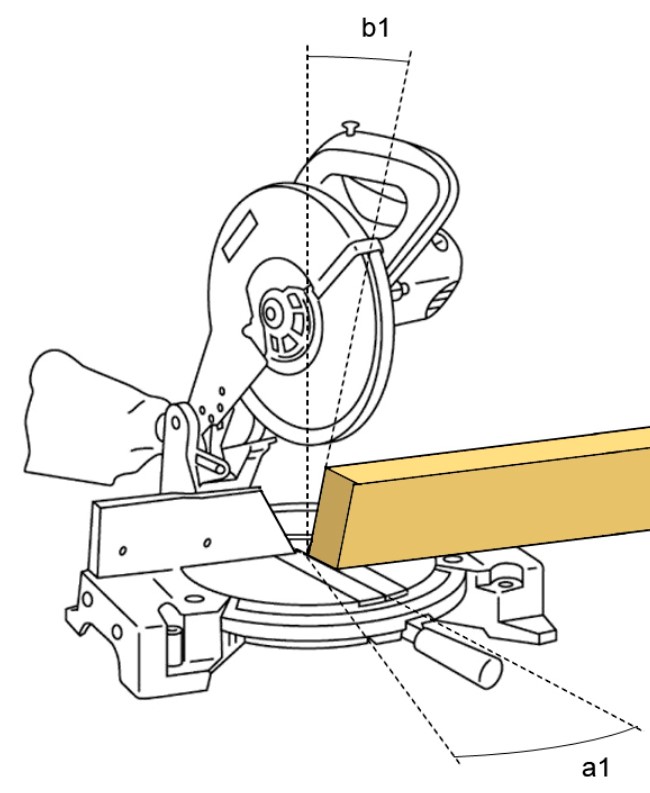

| α₁ | Mitre angle, horizontal table rotation |
| β₁ | Bevel angle, vertical blade tilt |

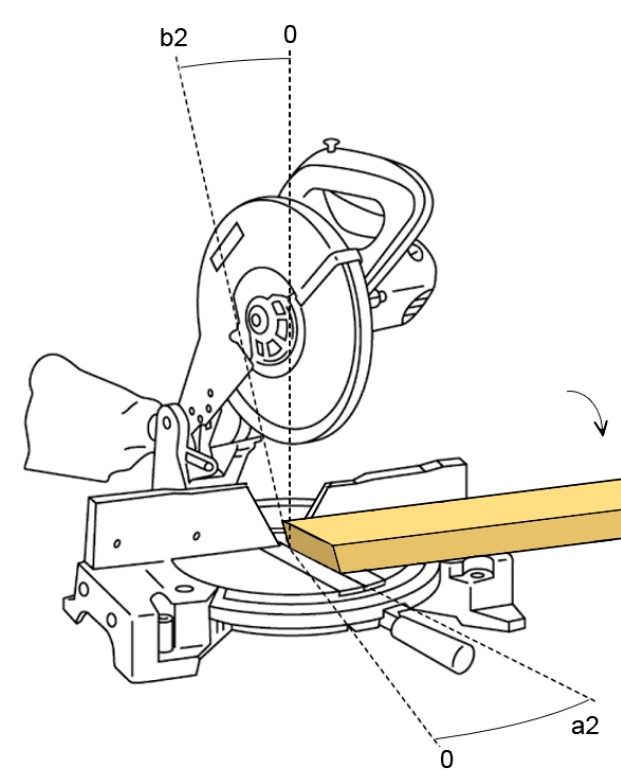

| α₂ | Plan angle between surfaces |
| β₂ | Vertical angle between planes when parts meet out of a single plane |
Recalculation formulas for compound cuts
When parts meet with plan angle α₂ and vertical offset β₂ the saw settings can be computed using:
$$\text{Mitre }(\alpha_1) = \arctan\!\left(\frac{\tan(\alpha_2)}{\cos(\beta_2)}\right)$$
$$\text{Bevel }(\beta_1) = \arcsin\!\big(\cos(\alpha_2)\,\sin(\beta_2)\big)$$
Workpiece orientation
| Mode | Description |
|---|---|
| Flat | The stock lies flat on the table. Only the mitre rotation is normally needed. |
| On edge | The stock stands on its narrow edge. Both mitre and bevel are typically required to produce the correct spatial joint. |
Visualization notes

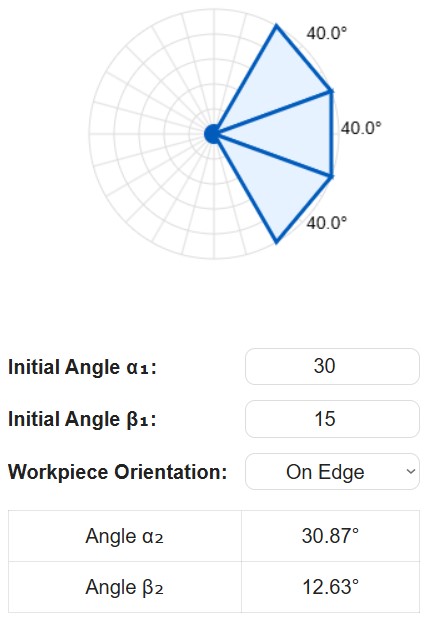

- The tool draws a circular plan view divided into sectors that correspond to each piece in the joint.
- Each sector is annotated with the computed cut angle to simplify marking and setup.
- A vertical schematic shows bevel direction and the relative planes when a compound cut is requested.
- Switching the workpiece orientation updates both the numbers and the graphics so you can verify the setup visually.
Practical guidance and best practices
Always measure the actual angle on the workpiece or wall rather than relying on nominal values. In many buildings nominal right angles deviate from 90 degrees. Record the saw settings and keep a template for repetitive cuts to reduce cumulative error. When performing mirror cuts, maintain a consistent cutting sequence and transfer the orientation correctly to prevent mismatched parts. For long members and mouldings, a one-degree error can produce visible gaps. Use fine adjustments and test cuts on scrap material before committing to final pieces.
🛠 Use appropriate protective equipment. Clamp workpieces securely and follow the saw manufacturer’s instructions when changing bevel or mitre settings. Do not rely solely on calculations; verify with test cuts.
