Thrust-to-Weight Ratio Calculator

This online tool computes the thrust to weight ratio TWR and a set of related performance numbers. It is designed for engineers and hobbyists who design small aircraft, drones, electric tugs and other propulsion systems. The result shows how strongly a system can accelerate, whether it can sustain hover, and what margin exists for maneuvers.

Input parameters

• Thrust — numeric thrust value. Enter units with the thrust unit selector.
• Thrust unit — newton or kilogram force. The calculator converts all inputs to newtons for internal processing.
• Dry mass — the system mass without fuel in kilograms.
• Fuel mass — optional. Added when full mass mode is selected.
• Mass mode — choose dry mass only or full mass including fuel.
• Local gravity — acceleration due to gravity. Default is 9.81 meters per second squared and can be adjusted for site specific work.

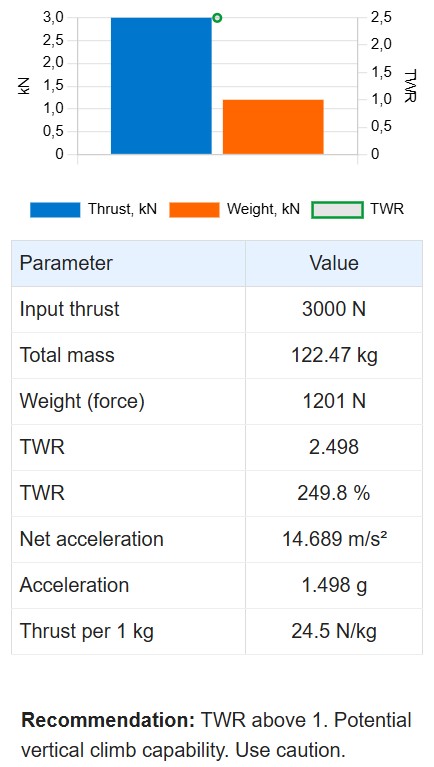

What the calculator provides

• TWR — thrust divided by weight, a dimensionless index of thrust capability.
• TWR in percent — easy visual scale for comparing systems.
• TWR expressed as g — the thrust to weight ratio shown in units of gravity.
• Net specific acceleration — the theoretical acceleration available after overcoming weight, given in meters per second squared.
• Acceleration in g — net acceleration divided by local gravity.
• Thrust per kilogram — direct engineering metric in newtons per kilogram.
• Graphic — bar display comparing thrust and weight with a line for TWR.
• Short guidance — a concise recommendation based on the computed ratio.

TWR explained

The thrust to weight ratio is the total thrust divided by the weight force. Weight is the mass used for calculation multiplied by local gravity. A TWR greater than one indicates that thrust exceeds weight and vertical climb or sustained hover becomes possible in the absence of aerodynamic losses. A TWR below one means thrust is smaller than weight, so sustained vertical climb is not possible and net acceleration will be negative unless lift or other forces assist.

Measurement and practical notes

When measuring thrust differentiate between short term peak thrust and sustained continuous thrust. Many motors and engines produce brief peaks during spool up. For design decisions use the sustained thrust value measured after thermal and electrical conditions stabilize. Engines powered by batteries will show thrust decline as voltage drops with battery discharge. Internal combustion engines and turbines show thrust variation with rpm and intake conditions. Always prefer averaged values taken over several runs rather than a single peak reading.

Worked example

• Given thrust equal to 900 newtons
• Dry mass equal to 50 kilograms
• Fuel mass equal to 2 kilograms and mass mode set to full mass
• Gravity set to 9.81 meters per second squared

First compute mass used for the calculation. Total mass equals dry mass plus fuel mass which gives 52 kilograms. Weight force equals total mass multiplied by gravity which results in 510.12 newtons. The thrust to weight ratio equals thrust divided by weight which equals 900 divided by 510.12 which is approximately 1.763. Expressed as a percentage this is 176.3 percent. Net acceleration equals thrust minus weight divided by mass and equals 7.499 meters per second squared. Net acceleration in units of gravity equals net acceleration divided by gravity which equals 0.764 g. These numbers indicate a system capable of strong vertical acceleration and a comfortable margin for maneuvers.

Interpreting results

• TWR below 0.3 indicates low dynamic ability and limited maneuver margin for aircraft and vehicles.
• TWR between 0.3 and 0.8 is typical for many light aircraft and delivery drones and allows level flight and modest maneuvers.
• TWR between 0.8 and 1.5 supports agile flight and aggressive maneuvering. Values above one enable vertical climb in ideal conditions.
• Always treat the result as idealized. Aerodynamic drag, control surface effectiveness, propulsion degradation with temperature and altitude and drivetrain losses reduce the real world performance compared to the simple TWR number.

Design recommendations

• Use sustained thrust values rather than short peaks for final sizing. Average several measurements for a reliable number.
• Include a safety margin over the computed requirement. For manned or safety critical applications add at least 20 percent margin to the required TWR.
• Account for altitude and temperature because air density changes alter available thrust for propellers and turbines.
• When comparing design options convert metrics to common units such as newtons per kilogram and meters per second squared to make direct engineering comparisons.
• Log test conditions including temperature, battery state, fuel state and measurement method to ensure reproducibility of thrust data.

🚀 The calculator gives a rapid, transparent estimate of thrust capability relative to mass. Use TWR as a first order indicator of acceleration and climb potential. Combine the computed TWR with aerodynamic analysis, drivetrain efficiency and safety margins before final design or certification.

Further reading

• Aircraft Performance and Design, John D. Anderson Jr.
• Small Unmanned Aircraft Systems Guide, R. Paul
• Introduction to Flight, John D. Anderson Jr.
• Fundamentals of Aircraft and Airship Design, Leland M. Nicolai and Grant E. Carichner
