This calculator provides a fast professional estimate of required balancing beads for wheels. It outputs recommended total bead weight per wheel, axle split, an inertia proxy and clear selection tips. The tool helps tire shops, service bays, tuners and car owners choose dynamic balancing solutions with loose beads or bead kits.
Table of Contents
Input parameters
- Vehicle type — sets base multipliers and allowed ranges for cars, SUVs, motorcycles, trucks, buses and special machinery.
- Operational profile — wheel duty mode such as city, highway, off-road or mixed. This adjusts a usage correction factor for dynamic loads.
- Tire width in millimetres — used to estimate sidewall height and internal volume.
- Aspect ratio in percent — the sidewall height fraction relative to width.
- Rim diameter in inches — required to compute outer tire radius.
- Total wheel mass in kilograms — if absent a default approximation is used.

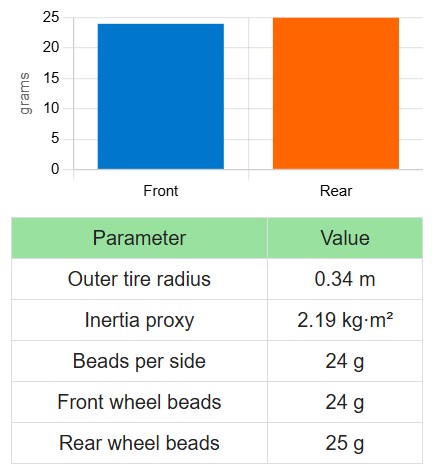

Automatic outputs
- Outer tire radius in metres.
- Inertia proxy as an approximate moment of inertia in kilogram metre squared.
- Empirical base bead mass corrected by vehicle type and operational profile.
- Suggested distribution between front and rear wheels.
- Notes and warnings on limits and installation best practices.
Core formulas
Sidewall height in metres
$$
h = \frac{W \cdot P}{100000}
$$
Outer tire radius in metres
$$
r = \frac{D_{rim}\cdot 0.0254}{2} + h
$$
Inertia proxy approximation
$$
I \approx m_{wheel}\cdot r^{2}
$$
Empirical base bead mass
$$
G_{base} = K\cdot I
$$
Corrected bead mass by vehicle and usage
$$
G_{corr} = G_{base}\cdot F_{veh}\cdot F_{usage}
$$
Axis split recommendation
$$
G_{front} = G_{rec}\cdot 0.95
$$
$$
G_{rear} = G_{rec}\cdot 1.05
$$
Worked example with different numbers
Example inputs
- Vehicle type: Car
- Usage: City
- Tire width: 205 mm
- Aspect ratio: 50 percent
- Rim diameter: 16 inches
- Total wheel mass: 15 kg
Step 1. Sidewall height
$$
h = \frac{205\cdot 50}{100000} = 0.1025\ \text{m}
$$
Step 2. Outer radius
$$
r = \frac{16\cdot 0.0254}{2} + 0.1025 = 0.3057\ \text{m}
$$
Step 3. Inertia proxy
$$
I = 15\cdot 0.3057^{2} \approx 1.4018\ \text{kg·m}^{2}
$$
Step 4. Base bead mass with K equal to 20
$$
G_{base} = 20\cdot 1.4018 \approx 28.036\ \text{g}
$$
Step 5. Apply corrections for vehicle and usage using factors 1.0 and 1.05
$$
G_{corr} = 28.036\cdot 1.0\cdot 1.05 \approx 29.4\ \text{g}
$$
Step 6. Round and clamp into allowed bounds for a car between 15 g and 80 g
$$
G_{rec} \approx 29\ \text{g}
$$
Step 7. Axis distribution
$$
G_{front}\approx 29\cdot 0.95 \approx 28\ \text{g}
$$
$$
G_{rear}\approx 29\cdot 1.05 \approx 30\ \text{g}
$$
Summary of example results
- Outer radius about 0.306 metres
- Inertia proxy about 1.40 kilogram metre squared
- Total beads per side approximately 29 grams
- Front wheel about 28 grams, rear wheel about 30 grams
- Front and rear gram values correspond to approximately 0.99 ounces and 1.06 ounces respectively
Reference table of typical bead weight ranges
| Vehicle class | Bead mass range | Note |
|---|---|---|
| Passenger car | 15 to 80 g, about 0.53 to 2.82 ounces | Typical values fall between 20 and 60 g for most sizes |
| SUV and pickup | 20 to 120 g, about 0.71 to 4.23 ounces | Higher moment due to mass and radius increases |
| Motorcycle | 5 to 40 g, about 0.18 to 1.41 ounces | Requires careful placement and balance checks |
| Light truck | 60 to 400 g, about 2.12 to 14.11 ounces | Use industrial kits and follow procedure |
| Bus and heavy equipment | 80 to 600 g, about 2.82 to 21.16 ounces | Professional calibration recommended |
Practical fitting guidance
- Treat the recommendation as a starting figure. Add beads in small increments along the inner bead seat then check balance on a machine or by short road test.
- For large imbalance combine loose beads with conventional weights to correct major eccentricity then fine tune using beads.
- Service technicians should use industrial bead kits for trucks and buses and consult manufacturer service rules.
- Repeat checks after any tire or rim change, and after repair or patch work.
The calculation uses a simplified empirical model based on an inertia proxy multiplied by tuning coefficients. This yields a fast and useful first estimate. For final tuning always verify on a dynamic balancer and consider wheel mass distribution, rim runout and tyre defects.
Suggested reading
- Tire and Vehicle Dynamics — Hans B. Pacejka. Authoritative reference on tyre behaviour and vehicle interaction.
- Race Car Vehicle Dynamics — William and Douglas Milliken. Deep treatment of handling and balance for high performance vehicles.
- Fundamentals of Vehicle Dynamics — Thomas D. Gillespie. Practical foundation in vehicle motion and suspension dynamics.
- Chassis Engineering — Herb Adams. Hands on guide to chassis setup and tuning including balancing impacts.
