Bench designer turns a few choices into a usable bench plan you can build today. Enter length, seat depth, seat height, slat count and slat width, pick a back and leg style, then watch a live 3D preview, grab a simplified drawing and get a cutlist with material volume, mass and rough cost. No guesswork, less waste, faster trips to the lumber yard.

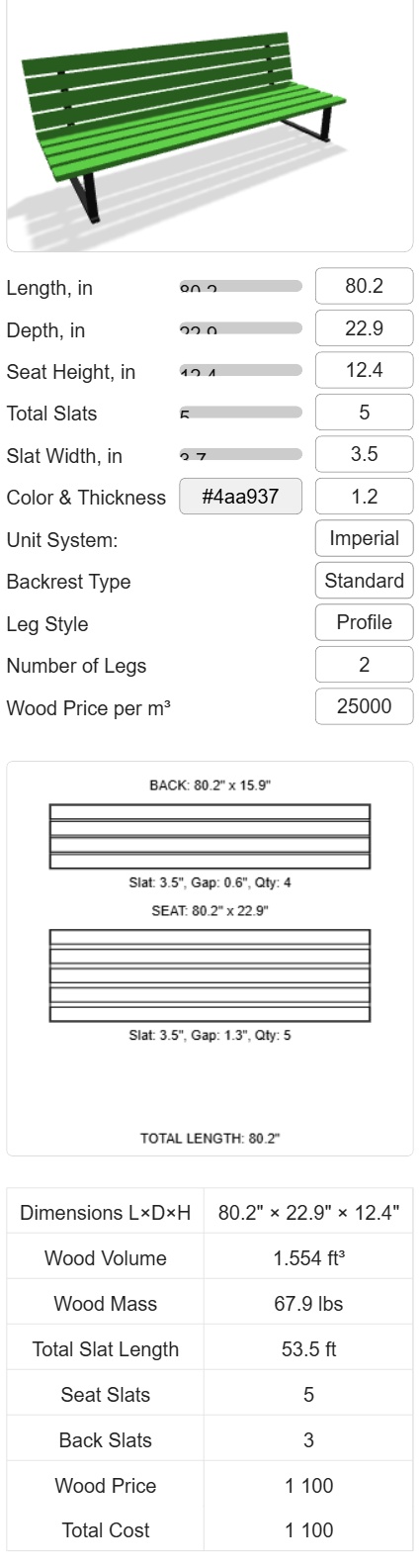

👉 Open the builder and use the left panel to set dimensions. The 3D preview sits on top and the results table is below. Key controls are length, seat depth, seat height, number of slats, slat width and slat thickness. Add a back or leave the bench backless. Choose metal or wooden legs and how many supports you want. The model updates as you type so you can see proportions immediately.

Table of Contents

Step-by-step workflow

First set overall size. For a comfortable bench aim for a length between 48 and 72 inches. Seat depth between 14 and 20 inches works for most people. Seat height is normally between 17 and 19 inches. Next set how many slats and how wide each should be. If the slats do not fit the tool warns you and suggests changes. Finally choose leg type, add a back if you want one, then export the drawing and cutlist.

What each option actually changes

Length sets how many people will sit. Depth controls how forward or relaxed the seat feels. Height affects accessibility and comfort. More slats give a cleaner look but increase material usage. Thicker slats add stiffness and weight. Adding a back increases slat count and total lumber. Metal supports reduce the number of wood pieces but affect cost and assembly.

Quick reference ranges for US bench types

Bench type	Length	Seat depth	Seat height	Back height above seat
Park / city bench	59 to 78 in	15 to 18 in	17 to 18 in	14 to 20 in
Garden / private bench	48 to 63 in	14 to 16.5 in	17 to 18 in	12 to 18 in
Narrow bench	31 to 47 in	12.5 to 15 in	15.5 to 17 in	10 to 14 in
Compact lounge bench	39 to 55 in	15.5 to 18 in	17 to 18.5 in	12 to 16 in

Built-in calculations with real numbers

✍ The calculator is based on plain, repeatable math. No abstract symbols you can’t verify. Every number you see can be recalculated manually with the same result.

First, the tool converts all dimensions from inches to meters. This is required because volume, weight, and cost are calculated in cubic meters.

Example input for one slat:

Length: 59 inches
Width: 3.5 inches
Thickness: 1.25 inches

Conversion from inches to meters uses a fixed factor:

1 inch = 0.0254 meters

Converted dimensions:

Length: 59 × 0.0254 = 1.4986 m
Width: 3.5 × 0.0254 = 0.0889 m
Thickness: 1.25 × 0.0254 = 0.03175 m

Volume of one slat:

V = 1.4986 × 0.0889 × 0.03175 = 0.00423 m³

If the bench uses 6 slats for the seat and 4 slats for the backrest, volumes are calculated separately.

Seat volume:

0.00423 × 6 = 0.02538 m³

Backrest volume:

0.00423 × 4 = 0.01692 m³

Total wood volume:

0.02538 + 0.01692 = 0.0423 m³

Weight is estimated using material density. For example, kiln-dried hardwood at 720 kg per cubic meter.

Weight = 0.0423 × 720 = 30.46 kg

Cost estimation uses the same total volume. If lumber costs 950 USD per cubic meter:

Cost = 0.0423 × 950 = 40.19 USD

These calculations are intentionally simple. The goal is not laboratory accuracy, but reliable planning. You know how much wood to buy, what it will weigh, and what it will roughly cost before stepping into the shop.

This approach also makes it easy to tweak designs. Change slat count, thickness, or length and instantly see how weight and cost move. That feedback loop is the real value of the calculator.

Practical shop tips and extra checks

Always account for saw kerf and planing losses. Add five to ten percent waste for boards with knots or grain matching. For long benches use at least three supports on benches longer than 71 inches. Dry fit the frame before final glue so you can correct alignment. Clamp using cauls to prevent dents on visible surfaces. Mark each part after cutting so assembly is fast and error free.

Weatherproofing and finishes

For outdoor benches use pressure-treated lumber or rot-resistant species. Apply a penetrating oil or marine-grade varnish and seal end grain to slow moisture uptake. If you expect heavy rainfall add a slight seat slope toward the back or provide gaps between slats to let water drain. For public benches consider powder-coated metal legs for long-term durability.

Ordering and cutlist advice

Convert the total linear inches of each nominal board to board feet when ordering. If nesting parts on panels plan cuts to reduce offcuts. Buy a little extra if pieces require exact grain matching. Keep a checklist: wood, fasteners, glue, finish, and any metal supports. The builder exports a simple cutlist that you can paste into a nesting tool or bring to your lumber supplier.

Safety and accessibility notes

Round the edges of slats for comfort and to avoid splinters. Use a small 1/16 to 1/8 inch chamfer on exposed corners. If children or elderly will use the bench set the seat height at the higher end of the range to ease sitting and standing. Test the final assembly with a slowly applied static load equal to two adults for public seating before installation.

What the drawing shows

The drawing gives a top and side schematic. The top view shows slat layout and spacing. The side view shows seat height, apron location and back height when included. Use the drawing for quick verification and to communicate dimensions to a shop. For production use a detailed CAD or shop drawing with joinery dimensions.
