Custom 3D Beehive Builder

Length, mm

Width, mm

Height, mm

Thickness

Underframe

Entrance W×H, mm

Rabbet D×W, mm

Board size, mm

Board price, $

Total hives

Part	Size	Qty

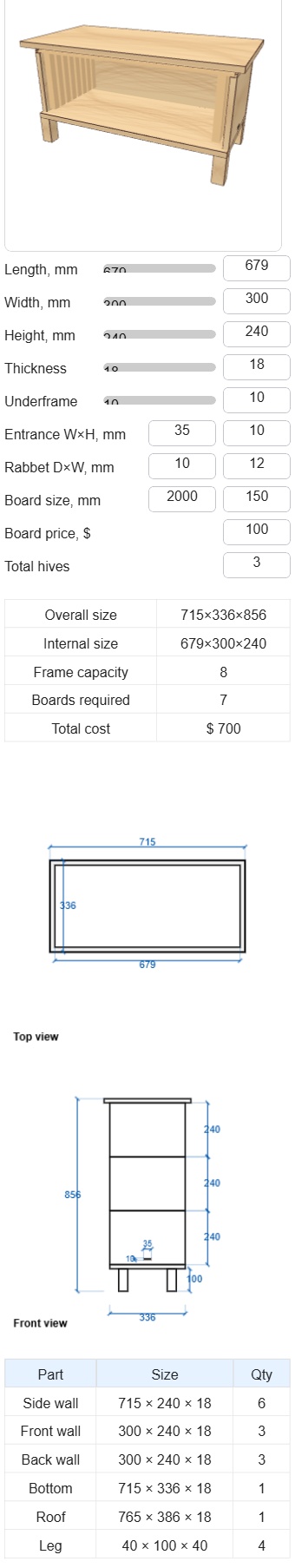

This 3D beehive builder is a hands-on design tool made for real work, not theory. It lets you design custom hive bodies from boards, dial in internal dimensions, and instantly see how everything fits together. The focus is practical beekeeping and woodworking. One clean workflow, clear dimensions, and results you can actually build from. This tool runs fully online and works smoothly on desktop and mobile.

📐 Instead of guessing clearances or sketching by hand, you get a live 3D view, engineering drawings, and an exact cut list based on your inputs. This makes the builder useful both in the shop and in the apiary, especially when you want repeatable, consistent hive bodies.

Table of Contents

What the 3D beehive builder does

Creates a real-time 3D preview of the hive body with one side open to inspect the interior layout.
Generates top and front engineering drawings with labeled dimensions.
Builds a precise cut list for all wooden parts.
Calculates how many standard boards you need and estimates total material cost.
Shows warnings for entrance size, frame rabbet depth, and bottom bee space.
Allows PNG export as a clean screenshot of the design and drawings.

How to use the beehive designer

Start by entering the internal body dimensions in inches: length, width, and height. Choose a single board thickness for the entire hive body to keep construction simple and consistent. Next, set the bottom bee space, entrance opening size, and rabbet dimensions for frame support. Enter the size of the boards you plan to buy and the price per board. Click Calculate. The tool first shows a summary with warnings and checks, then displays the drawings, cut list, and 3D model. Use the Download button when you want a printable reference in the workshop.

✍ Element overview. Bottom bee space is the clearance between the lower frame bar and the hive floor. The entrance is a rectangular opening in the front wall near the bottom. The rabbet is the internal ledge at the top of the body that supports the frames. In 3D, the bee space appears as a free gap, the entrance as a cutout, and the rabbet as an internal step. Drawings include dimension lines for verification.

Follow a simple build sequence: material prep, cutting, dry fit, final assembly, and finishing. Use the calculator as a technical reference, not as the only possible design. Wood movement, climate, and local practices always matter.

Core calculation formulas

General geometry

Outside length = inside length + 2 × board thickness
Outside width = inside width + 2 × board thickness
Total stack height = number of bodies × inside height + top thickness + bottom thickness + leg height
Approximate frame count = floor of inside width divided by frame spacing

Cut list logic

Each part is defined as length × width × thickness × quantity.
Total area equals the sum of all part areas.
Boards required equals total area divided by board face area, rounded up.
Total cut length equals the sum of longest side per part multiplied by quantity.

Wood volume and weight

Volume in cubic feet equals total area multiplied by thickness, converted from inches.
Weight equals volume multiplied by wood density.

Cost estimate

Total price equals number of boards multiplied by price per board.

Common frame standards and spacing

Frame type	Frame spacing	Top bar height	Notes
Hoffman style	1.46 in	5.7–11.8 in	Self-spacing design
Dadant deep	1.46 in	9.1–11.8 in	Common for brood boxes
Dadant medium	1.46 in	6.7–7.9 in	Mid-depth configuration
Langstroth	1.38 in	9.1–11.8 in	International standard
Top-bar	17.7 in	4.7–5.9 in	No side bars
Shallow frame	1.46 in	5.7 in	Honey supers
Universal frame	1.38–1.46 in	Custom	Defined per project

Recommended rabbet and entrance dimensions

Parameter	Minimum	Recommended	Comment
Rabbet depth	0.24 in	0.4–0.6 in	No need to go deeper
Rabbet width	0.24 in	0.4–0.8 in	Frame shoulder support
Entrance width	1.0 in	1.4–1.8 in	Affects ventilation
Entrance height	0.3 in	0.4–0.6 in	Too small restricts traffic
Bottom bee space	0.6 in	0.8–1.4 in	Prevents comb attachment
Wood shrink allowance	0	2–4 percent	Apply to cut length

Materials, densities, and board sizes

Material	Density	Board size	Notes
Pine	28 lb per cu ft	8 ft × 6 in	Light and affordable
Spruce	25 lb per cu ft	12 ft × 6 in	Similar to pine
Larch	37 lb per cu ft	10 ft × 6 in	Stronger, pricier
Oak	45 lb per cu ft	10 ft × 6 in	Heavy and durable
Plywood 3/4 in	44 lb per cu ft	8 ft × 4 ft	Sheet cutting
MDF 3/4 in	44 lb per cu ft	9 ft × 6.8 ft	Smooth surface

Checks and warnings

Rabbet deeper than board thickness will cut through the wall. Reduce depth or use thicker stock.
Entrance too small. Increase width or height.
Bottom bee space under 0.6 in can cause frame interference.

Before building, confirm boards are straight and dry, and measure their real dimensions. Density affects both weight and handling in the field. Always include a shrink allowance and align grain direction so long parts follow board length to minimize joints.

👉 For efficient cutting, start with long side walls, then end panels, roof, and bottom. This reduces waste. Use a router guide or template for rabbets. Consistent depth is critical. If the rabbet approaches board thickness, redesign before cutting.

Assemble without glue first. Clamp, check squareness, verify internal clearances, then fasten permanently. Internal fit matters more than nominal numbers. Fine-tune with sanding or shims instead of re-cutting panels.
