A compact estimator for calculating the material and labour cost of painting or applying a protective coating. Enter surface area, number of coats, material coverage and prices — the tool returns required volumes (litres), material costs, consumables, labour, VAT and a full project total. Results can be shown as a detailed table, a simple layer visualization and exported as an image for documentation.
Table of Contents
Quick summary — what it computes
- Required paint and primer volumes in litres (including waste allowance).
- Cost breakdown for paint, primer, consumables and labour.
- Subtotal, VAT and grand total in US dollars ($).

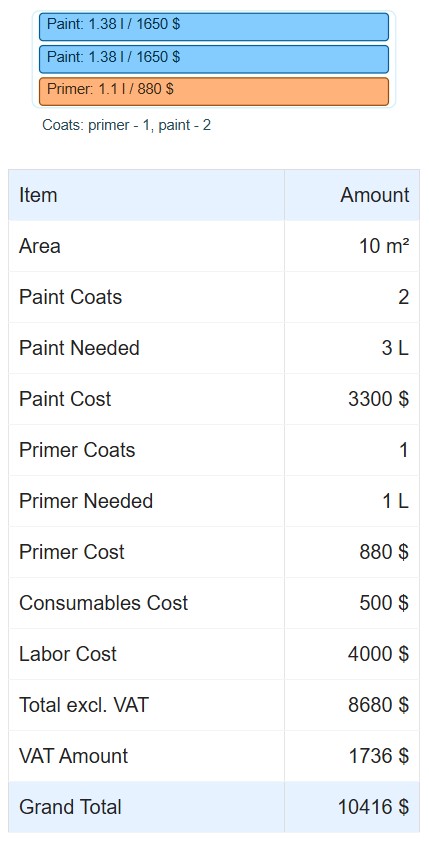

- Layer visualization (primer + paint coats) and downloadable result graphic.
- Preconfigured modes for car, interior and furniture (templates for common parameters).
Core formulae
Notation
- \(S\) — surface area to be covered, m²
- \(N_{paint}\) — number of paint (topcoat) layers
- \(N_{primer}\) — number of primer coats
- \(Cov_{paint}\) — paint coverage, m² per litre
- \(Cov_{primer}\) — primer coverage, m² per litre
- \(W\) — waste percentage (%)
- \(Price_{paint}\), \(Price_{primer}\) — price per litre in USD
Paint volume (litres):
$$
V_{paint} = \frac{S \cdot N_{paint}}{Cov_{paint}} \cdot \left(1 + \frac{W}{100}\right)
$$
Primer volume (litres):
$$
V_{primer} = \frac{S \cdot N_{primer}}{Cov_{primer}} \cdot \left(1 + \frac{W}{100}\right)
$$
Material costs:
$$
Cost_{paint} = V_{paint} \cdot Price_{paint}
$$
$$
Cost_{primer} = V_{primer} \cdot Price_{primer}
$$
Consumables and labour:
$$
Cost_{consumables} = S \cdot Price_{consumables}
$$
$$
Cost_{labor} = S \cdot Price_{labor}
$$
Totals:
$$
Subtotal = Cost_{paint} + Cost_{primer} +
$$
$$
+ Cost_{consumables} + Cost_{labor}
$$
$$
VAT = Subtotal \cdot \frac{P_{VAT}}{100}
$$
$$
Total = Subtotal + VAT
$$
Parameters (units)
| Symbol | Meaning | Units |
|---|---|---|
| \(S\) | Surface area to coat | m² |
| \(N_{paint}\) | Number of paint coats | count |
| \(N_{primer}\) | Number of primer coats | count |
| \(Cov_{paint}\) | Paint coverage | m² / L |
| \(Cov_{primer}\) | Primer coverage | m² / L |
| \(Price_{paint}\) | Paint price per litre | USD / L |
| \(Price_{primer}\) | Primer price per litre | USD / L |
| \(Price_{consumables}\) | Consumables cost per m² (tape, abrasives, masking) | USD / m² |
| \(Price_{labor}\) | Labour cost per m² | USD / m² |
| \(W\) | Waste allowance | % |
| \(P_{VAT}\) | VAT rate | % |
Worked example
Input values:
- Surface area: 25 m²
- Paint coats: 3
- Paint coverage: 10 m² / L
- Paint price: $25 / L
- Primer coats: 1
- Primer coverage: 12 m² / L
- Primer price: $12 / L
- Waste allowance: 12%
- Consumables: $3 / m²
- Labour: $8 / m²
- VAT: 10%
Step-by-step calculation
- Paint volume:
\(V_{paint} = \frac{25 \cdot 3}{10} \cdot 1.12 = 8.40\ \text{L}\) - Primer volume:
\(V_{primer} = \frac{25 \cdot 1}{12} = 2.33\ \text{L}\) - Paint cost: \(8.40 \times 25 = \$210.00\)
- Primer cost: \(2.33 \times 12 = \$28.00\)
- Consumables: \(25 \times 3 = \$75.00\)
- Labour: \(25 \times 8 = \$200.00\)
- Subtotal (excl. VAT): $210 + $28 + $75 + $200 = $513.00
- VAT (10%): $513 × 0.10 = $51.30
- Grand total: $513.00 + $51.30 = $564.30
Typical coverage rates, guideline
| Surface | Paint, m²/L | Primer, m²/L | Note |
|---|---|---|---|
| Smooth metal | 12–16 | 14–18 | Low absorption, efficient coverage |
| Automotive body (moderate complexity) | 8–10 | 10–12 | Consider shapes, masking losses |
| Interior plaster / drywall | 9–12 | 10–14 | Standard interior walls |
| Smooth wood | 8–10 | 10–12 | Doors, furniture panels |
| Porous wood (untreated) | 5–7 | 6–8 | High absorption — extra coats needed |
| Concrete / smooth brick | 7–9 | 8–10 | Smooth masonry |
| Porous masonry | 4–6 | 5–7 | Requires deep-penetrating primer |
| Gas concrete / highly porous | 3–5 | 4–6 | High absorption — large material allowance |
Practical recommendations
- Use at least two topcoats for even colour and durability; three coats on high-wear surfaces.
- Increase waste allowance for complex geometry (15–20% for heavily contoured parts).
- Adjust labour rates by region and surface preparation complexity.
- Priming improves adhesion and often reduces overall paint consumption.
- When in doubt, select the next larger standard size or add a conservative margin — safer and usually cheaper than rework.
- Export the result as a PNG report for client proposals or job sheets.
Note: Calculations are approximate. Actual material use and costs depend on application method, surface condition and local prices.
References
- McCabe, F., Painting and Decorating: Materials, Techniques and Costing, Routledge, 2018.
- Sullivan, P., Estimating Construction Costs, Pearson, 2020.
- Chudley, R., Construction Technology, 6th Edition, Routledge, 2019.
- Allen, E., Fundamentals of Cost Estimating for Construction, Wiley, 2017.
