How do I use the 3D unfolding & paint coverage calculator?

Select a 3D shape (e.g., cube, cylinder, cone), enter its dimensions, and the tool calculates the surface area. You can then estimate the amount of paint needed based on the coverage per unit area.

What shapes can I calculate?

The calculator supports various shapes including cubes, rectangular prisms, spheres, cylinders, cones, and pyramids.

How is the surface area calculated?

Each shape has a specific formula for surface area. For example, the surface area of a cube is calculated as 6 times the square of the edge length.

Can I estimate paint coverage?

Yes, after calculating the surface area, you can estimate the amount of paint needed based on the coverage per unit area, considering factors like the number of coats and waste allowance.

What units are supported?

You can choose between metric (e.g., millimeters, centimeters, meters) and imperial (e.g., inches, feet) units. The calculator automatically converts and displays results in the selected units.

3D Unfolding & Paint Coverage Calculator

3D shape

Coverage

Coats

Waste allowance, %

Enter dimensions and press Calculate.

This tool explains how to compute surface area for standard three dimensional shapes and shows how formulas apply to real tasks like design, packaging and estimating paint or film coverage.

Table of Contents

Cube area

Formula

\(S = 6 a^2\)

a is the edge length
All six faces are equal so the formula is simple
Doubling the edge multiplies surface area by four

Rectangular prism surface measurement

Formula

\(S = 2(ab + bc + ac)\)

a, b, c are the three edge lengths
The solid has three distinct face sizes, each appearing twice
If all sides match the formula reduces to the cube case

Sphere surface

Formula

\(S = 4\pi r^2\)

r denotes the radius
Area scales with the square of the radius so tripling radius increases area nine times
Common in physics and geodesy when measuring curved surfaces

Cylinder surface area

Formula

\(S = 2\pi r^2 + 2\pi r h\)

r is base radius
h is cylinder height
Total area equals two circular ends plus side area equal to a rectangle when unrolled

Cone total area

Formula

\(S = \pi r^2 + \pi r l\)

r is base radius
l is slant height
Surface equals base area plus lateral sector area

Pyramid surface area

Formula

\(S = S_0 + \frac{P\,l}{2}\)

\(S_0\) is base area
P is base perimeter
l is apothem or slant height of a side face
Total area is base plus sum of triangular side faces

Worked examples

Cube example

Given edge length a equals 18 cm that is 0.18 m

\(S = 6 \cdot (0.18)^2 = 0.1944\ \mathrm{m}^2 = 1\,944\ \mathrm{cm}^2\)

Cylinder example

Given radius r equals 7 cm that is 0.07 m and height h equals 14 cm that is 0.14 m

\(S \approx 2\pi(0.07)^2 + 2\pi(0.07)(0.14) = \) \( 987\ \mathrm{cm}^2\)

Pyramid example

Given base area \(S_0 = 180\ \mathrm{cm}^2\), perimeter P equals 52 cm and slant height l equals 16 cm

\(S = 180 + \frac{52 \cdot 16}{2} = 596\ \mathrm{cm}^2\)

Units and conversions

Use the unit switch to choose metric or imperial. With metric selected enter dimensions in millimetres, centimetres or metres. With imperial selected enter dimensions in inches or feet. Results appear in square units matching the selected system, for example mm², cm², m² for metric and in², ft² for imperial. The calculator will also offer an alternate system value when needed.

Length facts – 1 metre equals 100 centimetres and equals 1000 millimetres
Area scaling – area factors are the square of length factors so 1 m² equals 10 000 cm² and equals 1 000 000 mm²
Imperial facts – 1 inch equals 25.4 millimetres, 1 foot equals 0.3048 metres
Cross system area – 1 ft² equals 0.092903 m² and 1 in² equals 0.00064516 m²
The tool applies these conversions automatically and squares the length ratio when converting areas

Quick examples

Convert metric to imperial – 0.1944 m² equals 2.09 ft²
Convert imperial to metric – 1.5 ft² equals 1 393.5 cm²
Metric breakdown – 2.50 m² equals 25 000 cm² and equals 2 500 000 mm²

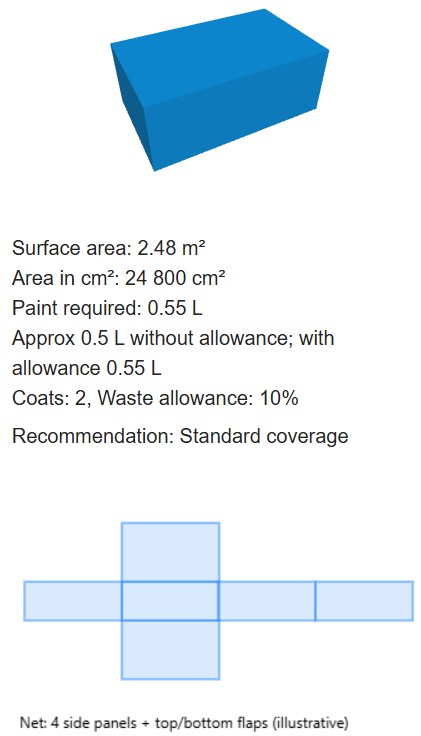

3D Unfolding & Paint Coverage Calculation summary

👉 Tip – when you change the unit switch the input fields and displayed results update immediately to avoid manual recalculation. Remember that area conversion uses squared length ratios so keep units consistent when entering dimensions.

Quick procedure

Choose shape type
Enter dimensions in chosen units
Run calculation to get formula with substituted numbers and final area
Save or print results if needed

Shape parameters summary

Shape	Parameters	Meaning
Cube	a	Edge length
Rectangular prism	a, b, c	Three orthogonal side lengths
Sphere	r	Radius
Cylinder	r, h	Base radius and height
Cone	r, l	Base radius and slant height
Pyramid	S0, P, l	Base area, base perimeter, slant height

Calculator removes unnecessary trailing zeros in outputs
Unfolded nets are schematic only so allow extra material for seams and overlaps
Invalid inputs trigger a clear error message
Formulas assume ideal thin shells. Add material thickness when needed
For large scale projects include rounding and measurement tolerances in estimates

Conclusion: Use these formulas to get reliable surface area results for design, estimating material quantities and planning coatings. Surface area calculation helps you size supplies and avoid waste.
